K8s101

Kubernetes (k8s, Kate’s) is an open-source system for automating deployment, scaling, and management of containerized applications".

• Written in Go language.
• Inspired by Google Borg

Microservices: Key Characteristics

Microservices are modular, independently deployable applications designed to work together in a distributed system. They are characterized by:

Core Attributes

• Language & Dependencies
  • Can be written in various programming languages (modern or legacy).
  • Isolated dependencies/libraries (often via containers).
• Modularity
  • Loosely coupled, with clear bounded contexts.
  • Owned by small teams (“you build it, you run it”).

Architectural Features

1. Event-Driven
   • Async communication (e.g., Kafka, RabbitMQ).
2. Service-Oriented (SOA Evolution)
   • More granular than traditional SOA.
3. Scalability
   • Independent horizontal scaling per service.
4. Zero Downtime & Seamless Upgrades
   • Rolling updates, blue-green deployments.
5. Polyglot Flexibility
   • Mix of languages/frameworks (e.g., Go, Python, Java).

Deployment & Infrastructure

• Cloud-Native
  • Deployable on commodity hardware, VMs, or cloud (e.g., Kubernetes, serverless).
• Resilience Patterns
  • Circuit breakers, retries, timeouts.
• Decentralized Data
  • Each service manages its own database.

Key Benefits

✔ Faster releases (independent deployment). ✔ Fault isolation (failure in one service ≠ system-wide outage). ✔ Technology agility (choose best tool per problem).

Container Orchestration

Architecture

Kubernetes clusters to be installed, with only a few commands, on top of cloud Infrastructures-as-a-Service (IaaS).

Goals

• Fault-tolerance
• On-demand scalability
• Optimal resource usage
• Auto-discovery to automatically discover and communicate with each other
• Accessibility from the outside world
• Seamless updates/rollbacks without any downtime.

Deployment

Containers encapsulate microservices and their dependencies .

A container image bundles the application along with its runtime, libraries, and dependencies, and it represents the source of a container deployed to offer an isolated executable environment for the application.

runC (core runtime)

• An implementation of Open Container Initiative (OCI) specification
• Wrapped by containerd or cri-o, Container Runtime Interface (CRI) compliant
• Further interacted with K8s

  flowchart TD
A[K8s] ---> B[containerd];
B ---> C[runC];

Cloud Native Computing Foundation (CNCF)

The CNCF is a cloud-native ecosystem built around the principles of microservices, scalability, and distributed systems. It hosts a collection of open-source projects — like Kubernetes, Prometheus, and Envoy — that run on top of Linux and extend its capabilities into the cloud era.

It’s hosted by Linux Foundation

Many graduated and incubating projects like:

• Kubernetes

• Argo

• etcd

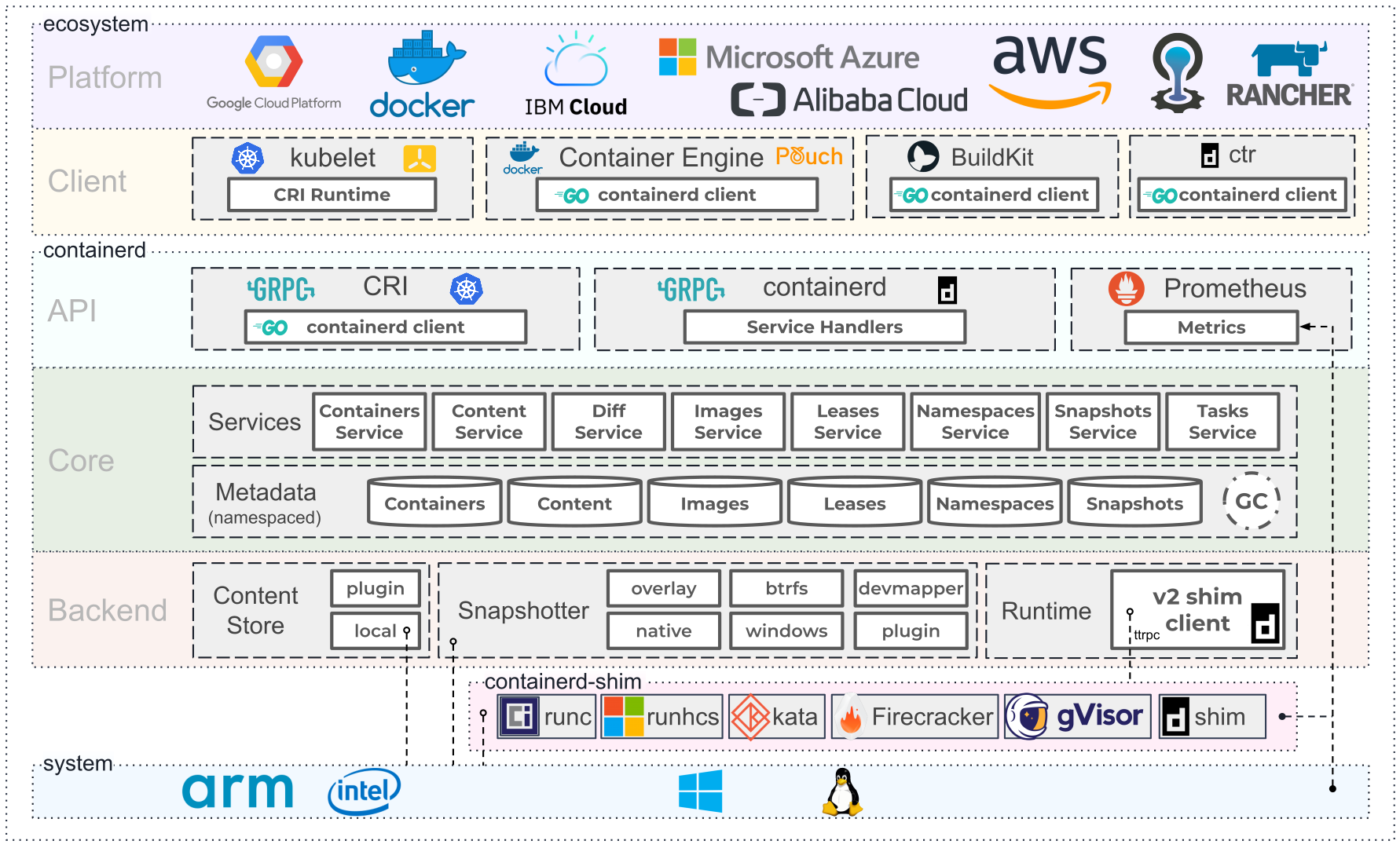

• containerd

• cri-o

• Envoy

• Prometheus

• Flux

• gRPC

• KubeVirt

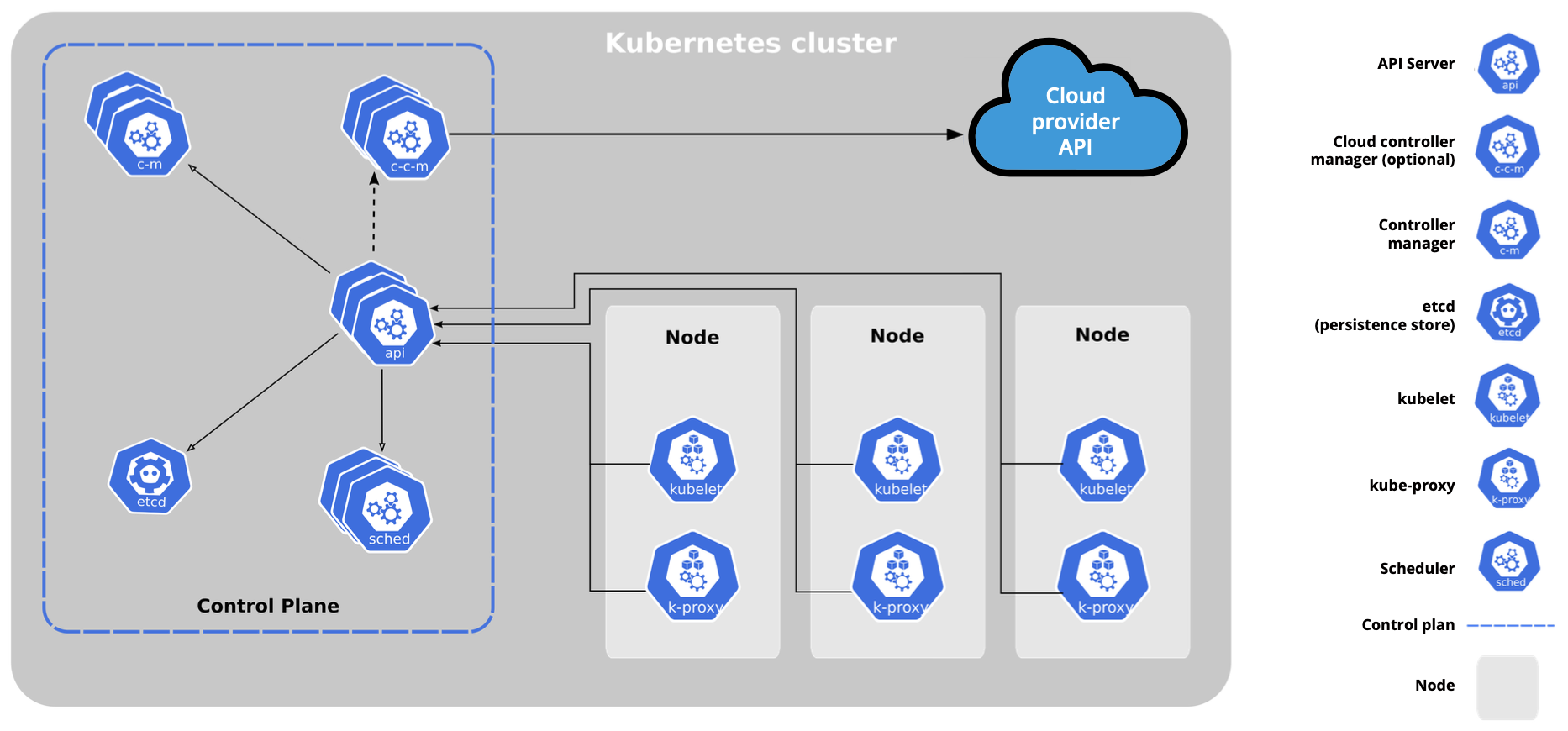

K8s Cluster

• control plane nodes
• worker nodes

Control plane node

• Running environment for control plane agents
• Agents with different roles responsible for cluster state management
• Ensure fault tolerance
  • control plane node replicas in cluster
  • configured in HA mode
  • only one active
  • control plane components stay in sync across replicas
• Persist cluster state in distributed K-V store
  • k-v store on control plane node (stacked topology)
    • replicas ensure resiliency
  • k-v store on dedicated host (external topology)
    • separately replicated for HA
• Components
  • API server
    • kube-apiserver
    • RESTful API
    • the only component to talk to K-V store (read / write cluster state)
    • highly configurable and customizable, secondary servers, routing based on custom defined rules
  • Scheduler
    • assign workload objects (e.g. pods encapsulating containers) to worker nodes
    • obtain resource usage data from K-V store via API server
    • obtain workload requirements from K-V store via API server
    • scheduling algorithm considering
      • data locality
      • affinity / anti-affinity
      • taints
      • toleration
      • cluster topology
    • filter nodes
  • Controller Manager
    • regulate the state of the Kubernetes cluster
    • kube-control-manger
    • cloud-control-manager
      • talk to IaaS when nodes become unavailable
  • Key-Value Store
    • etcd

      • written in Go

      • storing the cluster state

      • store configuration details such as subnets, ConfigMaps, Secrets, etc.

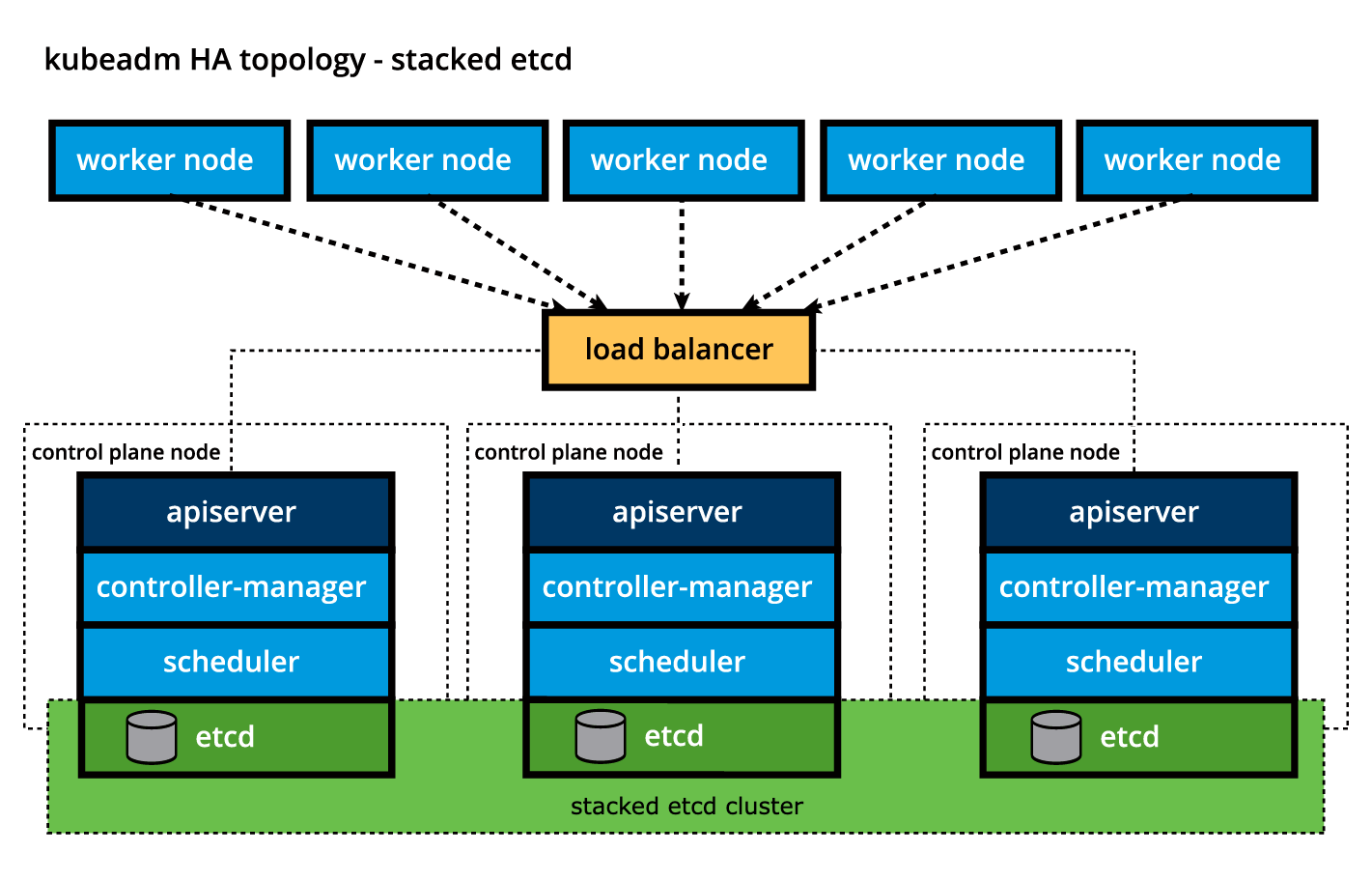

      • Stacked etcd Topology

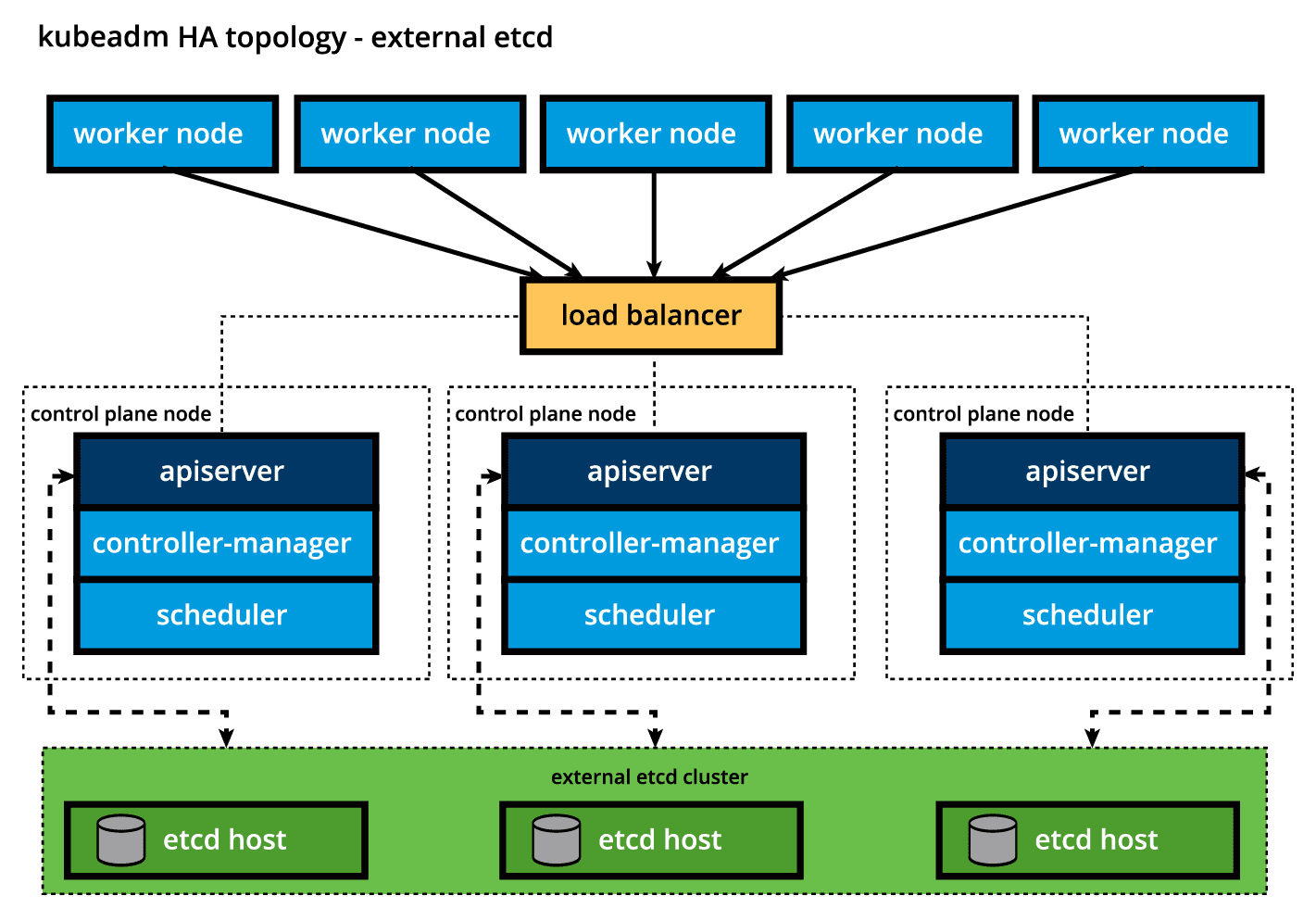

      • External etcd Topology

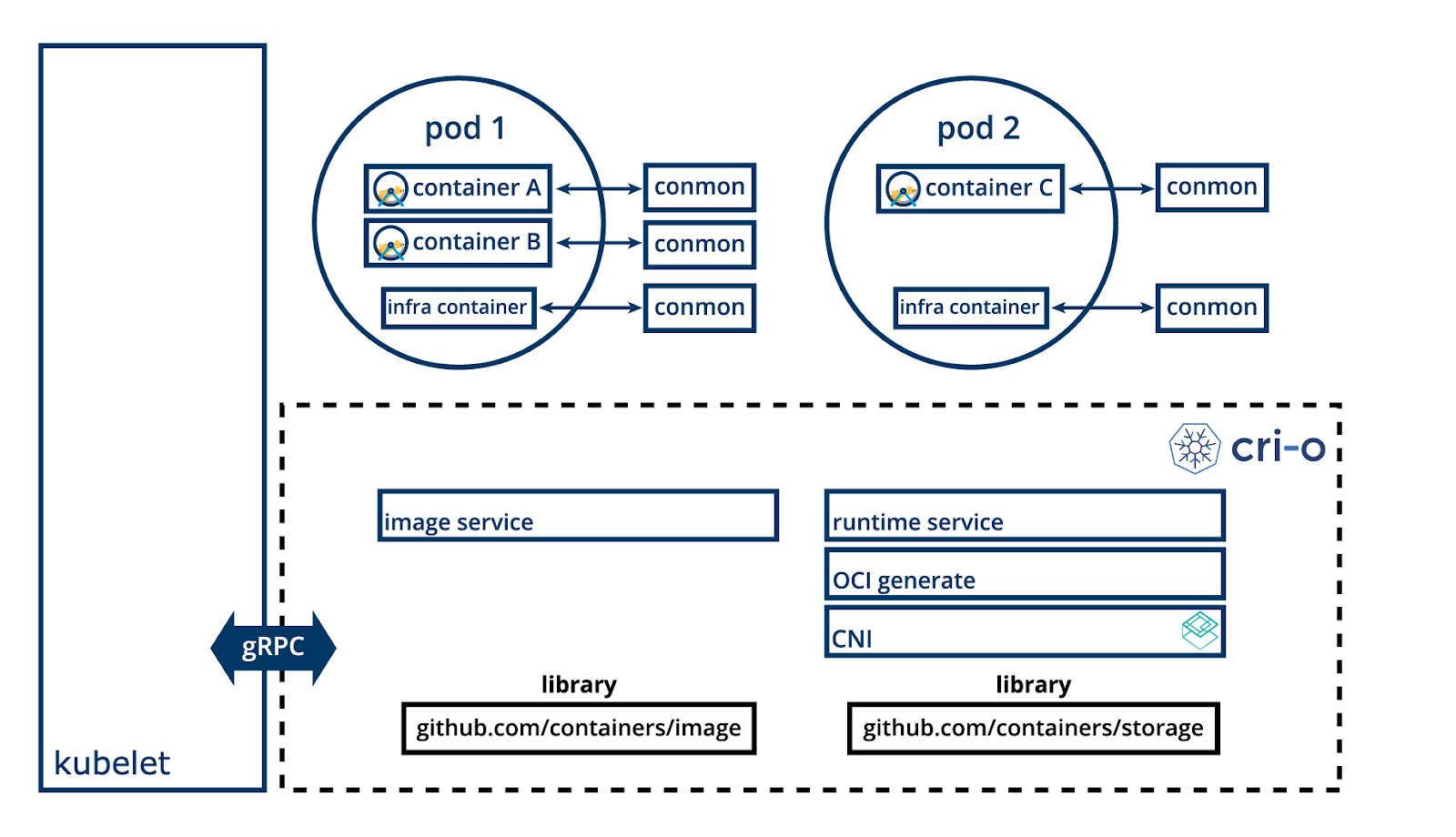

  • Container Runtime
  • Node Agent (Kubelet)
  • Proxy (Kube-proxy)
  • Dashboards, monitor, logger

Worker node

• Pod: the smallest scheduling (start/stop/reschedule) work unit, encapsulating a collection of containers

  • Network traffic between client users and containerized applications in Pods are handle by worker node

• Components:

  • Container runtime
  • Node Agent - kubelet
  • Proxy - kube-proxy
  • Add-ons for DNS, dashboards, cluster-level monitoring and logging, and device plugins

Kubernetes is described as “container orchestration engine”, but lacks the ability of running container directly. It requires container runtime on the node where a Pod and its containers are to be scheduled.

• Container runtime supported by Kubernetes:

  • containerd
  • CRI-O
  • Docker Engine (use containerd)

• Node agent - Kubelet

  • running on every node (Control plane and Worker)

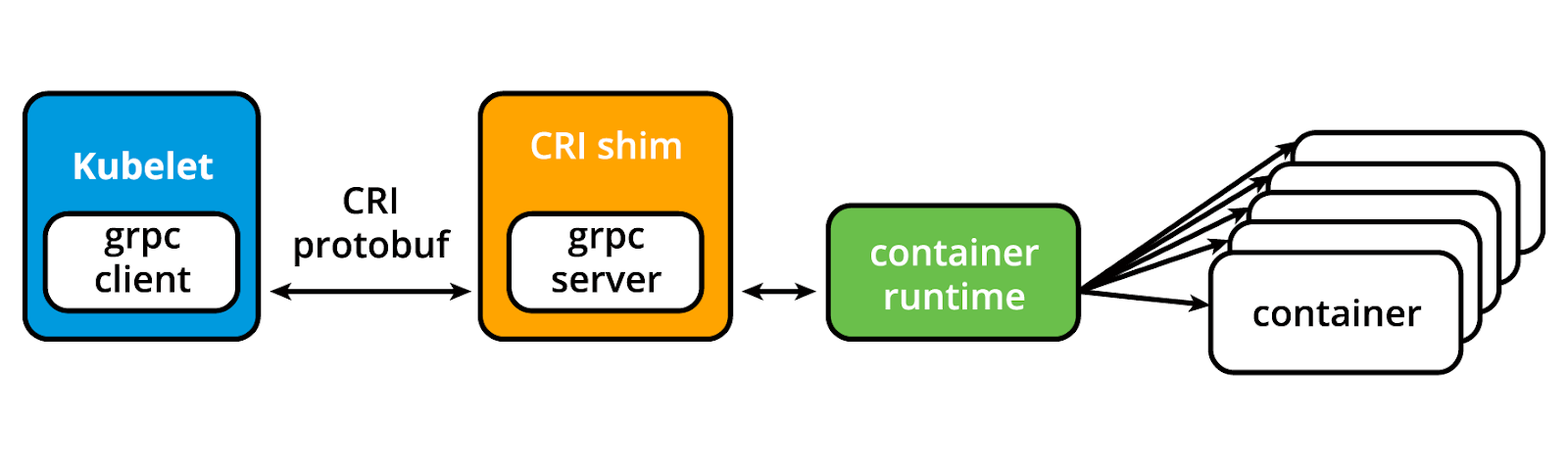

  • speaks CRI (plugin based architecture) to container runtime
    • CRI consists of protocol buffers, gRPC API, libraries and other tools
    • CRI provides two services: ImageService and RuntimeService
    • kubelet acts as gRPC client
  • CRI shim (i.e. adapter/service provider/middleware):
    • cri-containerd
    • cri-dockerd
    • shim acts as gRPC server
  • Modern container runtime are mostly CRI compatible no need of separate shims

• Proxy - Kube-proxy
  • network agent runs on each node
  • responsible for TCP, UDP, and SCTP (Layer 4) stream forwarding or random forwarding across a set of Pod backends
  • work with iptables of the node

Networking Challenges

• Container-to-Container communication inside Pods
  • sharing the same network namespace: underlying host system kernel’s virtualisation feature, meaning sharing same IP address, network interface, port space
    • via localhost: like processes in same VM attached to different ports
    • via shared volume: inter-container communication, write to / read from a shared volume
• Pod-to-Pod communication on the same node and across cluster nodes
  • treats Pods as VMs on a network, each Pod is assigned an unique IP (IP-per-Pod) by CNI plugin
• Service-to-Pod communication within the same namespace and across cluster namespaces
  • via kube-proxy: exposing services to external world over a virtual IP address and a dedicated port
• External-to-Service communication for clients to access applications in a cluster

Fault-tolerance

• The Raft Consensus Algorithm

  • An algorithm to address “Consensus” problem, multiple servers agree on values, which is a fundamental problem in fault-tolerant distributed system.

• Raft Visualization Explanation

  • Node type: Leader, Candidate, Follower

  • Leader Election, majority nodes agree

    • two timeout settings
      • election timeout: a follower waits until becoming a candidate
        • randomized to be 150ms~300ms
        • after the timeout a follower becomes a candidate and starts a new election term, votes for itself, sends out Request vote messages to other nodes
        • if a receiving node hasn’t voted in this term, vote for the candidate and resets its election timeout
        • once the candidate has a majority of votes, it becomes leader
      • heartbeat timeout: the intervals in which Append Entries messages are sent by the leader to its followers
        • followers respond to each Append Entries message
        • this election term will continue until a follower stops receiving heartbeats and become a candidate
    • only one leader can be elected at a time (by majority votes)
    • vote may split when multiple nodes start an election for the same term, the term might be passed then a new election starts

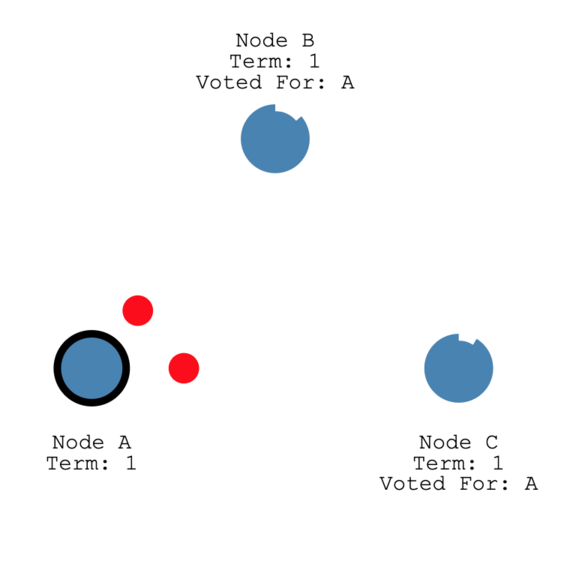

    Elected and Keep sending heartbeat

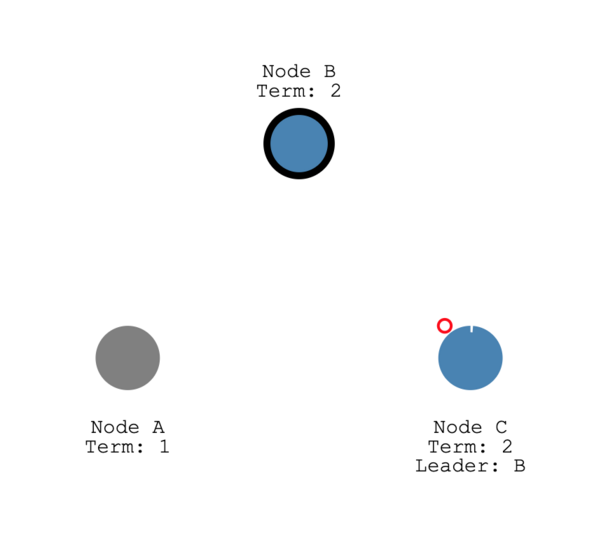

    Re-election when no heartbeat



  • Log Replication, all changes go through the Leader following this process:

    • a client send a change to the leader
    • the leader adds the change as an entry to its log (uncommitted)
    • the change is sent to the followers on the next heartbeat (replication)
    • the leader node wait until majority nodes have written the entry (ack)
    • the entry is now committed in the leader node, state change has been made
    • the leader notify the followers that the entry is committed
    • the cluster has come to consensus about the system state
    • the leader respond to the client the state change

  • Network partition, multiple leaders in different terms

    • when network issue is fixed and the partition disappears, the minority leader steps down and all its uncommitted log entries are cleared

Kubernetes Configuration

  flowchart TD
A[PaaS] ---> B["Kubernetes (CaaS, container as a service)"]
B ---> C[IaaS]
C ---> D[Bare metal/VMs]

Installation Types

• all-in-one single-node (learning, development and testing)
• single control plane node and multiple worker node
• single control plane node with single etcd node (external) and multi-worker
• multiple control plane node (HA mode, with stacked etcd) and multiple worker node
• multiple control plane node, multiple etcd (external) and multiple worker

Infrastructure

• IaaS choice: bare mental, public cloud, private or hybrid cloud
• OS choice: Linux (Red Hat-based, Debian-based, or Windows)
• CNI solution choice

Local Learning Cluster Installation Tools

• Minikube
• Docker Desktop
• MicroK8s
• K3S (originally from Rancher, CNCF project)

Production Ready Cluster Installation Tools

• kubeadm
• kubespray
• kops

Kubernetes Certified Service Provider (KCSP)

• Popular Hosted Solutions
  • ACK
  • EKS
  • AKS
  • DOKS
  • GKE
  • ICKS
  • OKE
  • RHO
  • VTKG

Kubernetes on Windows

Only supported as worker node to deploy Windows container in the cluster

Local K8s Cluster Installation

Preparation

Type-2 Hypervisor or Container Runtime

• Docker

Minikube and kubectl

minikube [start|stop] [-p profile]
minikube profile list
minikube dashboard
kubectl get pods -A

Add completion to Zsh

omz plugin list | grep -E "kubectl|minikube"

In ~/.zshrc,

plugins=(
  git
  kubectl
  minikube
)
