Ch09 Process Relationships

rltyty included in IT

2025-08-16 1759 words

Contents

Terminal Logins

BSD Terminal Logins

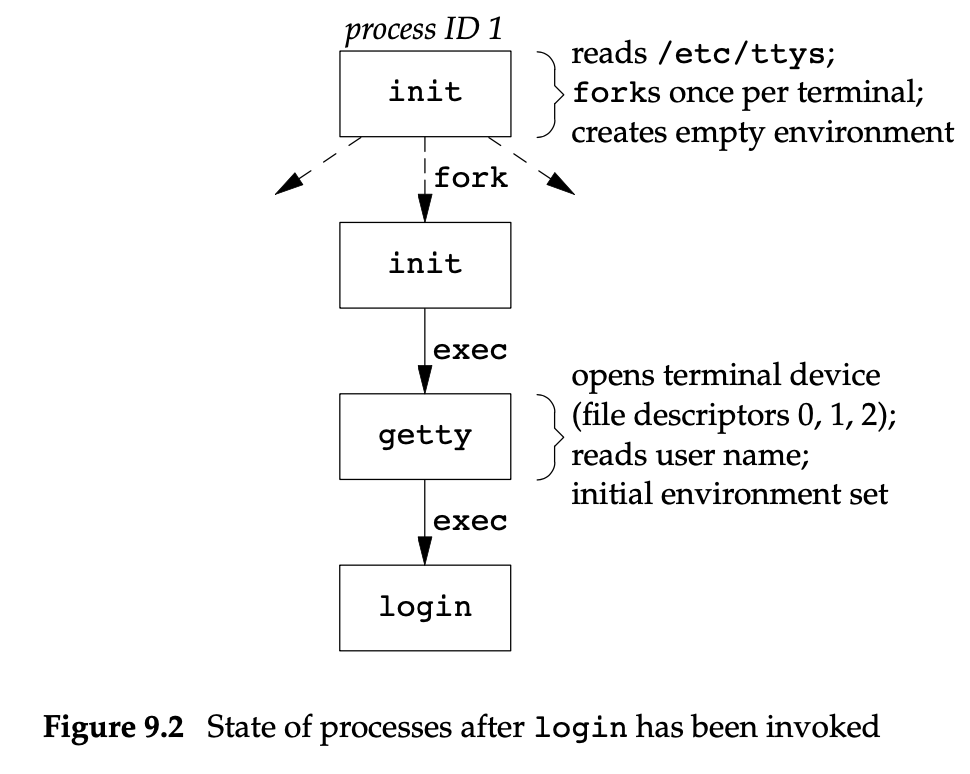

init process reads /etc/ttys line by line, for every terminal device that allows a login, does a fork followed by an exec of the program getty

The getty program open the terminal device for reading and writing. Once the device is opened, file descriptor 0, 1, and 2 are set to the device. Then getty retrieve input user name, prepare environments and calls login program, like

execle("/bin/login", "login", "-p", username, (char *)0, envp);

See gettytab for more details on customizing getty actions, like invoking programs other than the default login.

login calls getpass(3) to read input password and calls crypt(3) to encrypt the password and compares the result with pw_passwd field from the shadow password file entry.

If authentication fails, login calls exit with return value 1. The parent init will notice this and fork and exec getty to repeat the above procedure over again.

In modern system, PAM (Pluggable Authentication Modules) is used to support multiple authentication procedures.

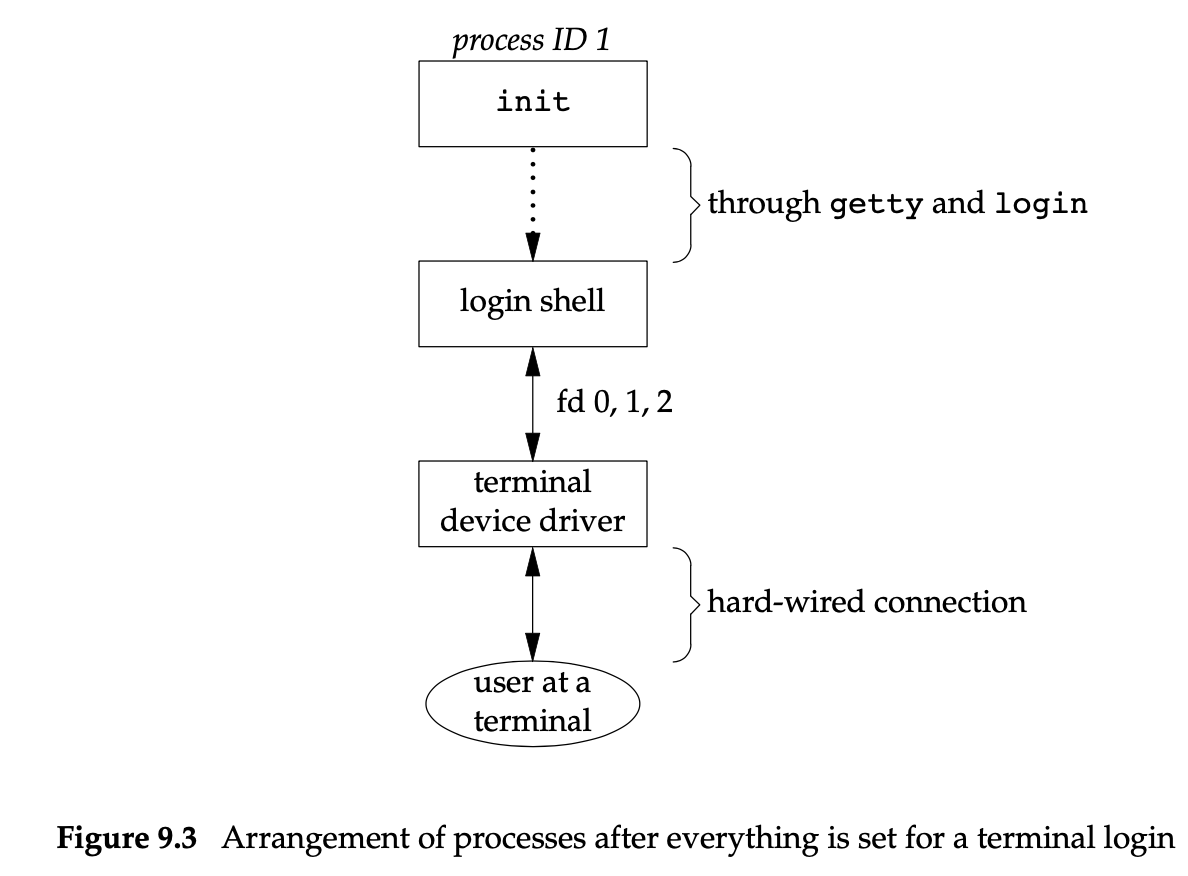

If authentication succeeds, login will
- chdir to user home directory
- chown ownership of the terminal device
- chmod permissions of the terminal device
- setpgid and initgroups to set up group id
- initialize environments:
  - HOME
  - SHELL
  - USER
  - PATH
- setuid to change user id
- finally invoke the login shell

Example:

execl("/bin/sh", "-sh", (char *)0); // minus before sh indicates it's login shell

login could also do many things like

prints message-of-the-day file
checks for new email
read start-up files like .profile, .bash_profile, .cshrc, .zshrc

Mac OS X Terminal Logins

Essentially the same procedure.

init is performed by launchd
graphical-based loginwindow

console "/System/Library/CoreServices/loginwindow.app/Contents/MacOS/loginwindow" vt100 on secure onoption="/usr/libexec/getty std.9600"

Linux Terminal Logins

Also similar to BSD terminal logins

init is performed by systemd
character based terminal agetty

Example: On Debian 12

/sbin/init -> /lib/systemd/systemd

etc/systemd/system/getty.target.wants/getty@tty1.service
...
ExecStart=-/sbin/agetty -o '-p -- \\u' --noclear - $TERM
...

Network Logins

Unlike a serial terminal login, which is a point-to-point connection between the computer and the terminal device, network logins come through the kernel’s network interface drivers (e.g. Ethernet driver), and the number of connections are undetermined.

To use the same way to process logins over both terminal and network, a software driver called pseudo terminal is used to emulate the behaviour of a serial terminal and map the terminal operations to network operations.

BSD Network Logins

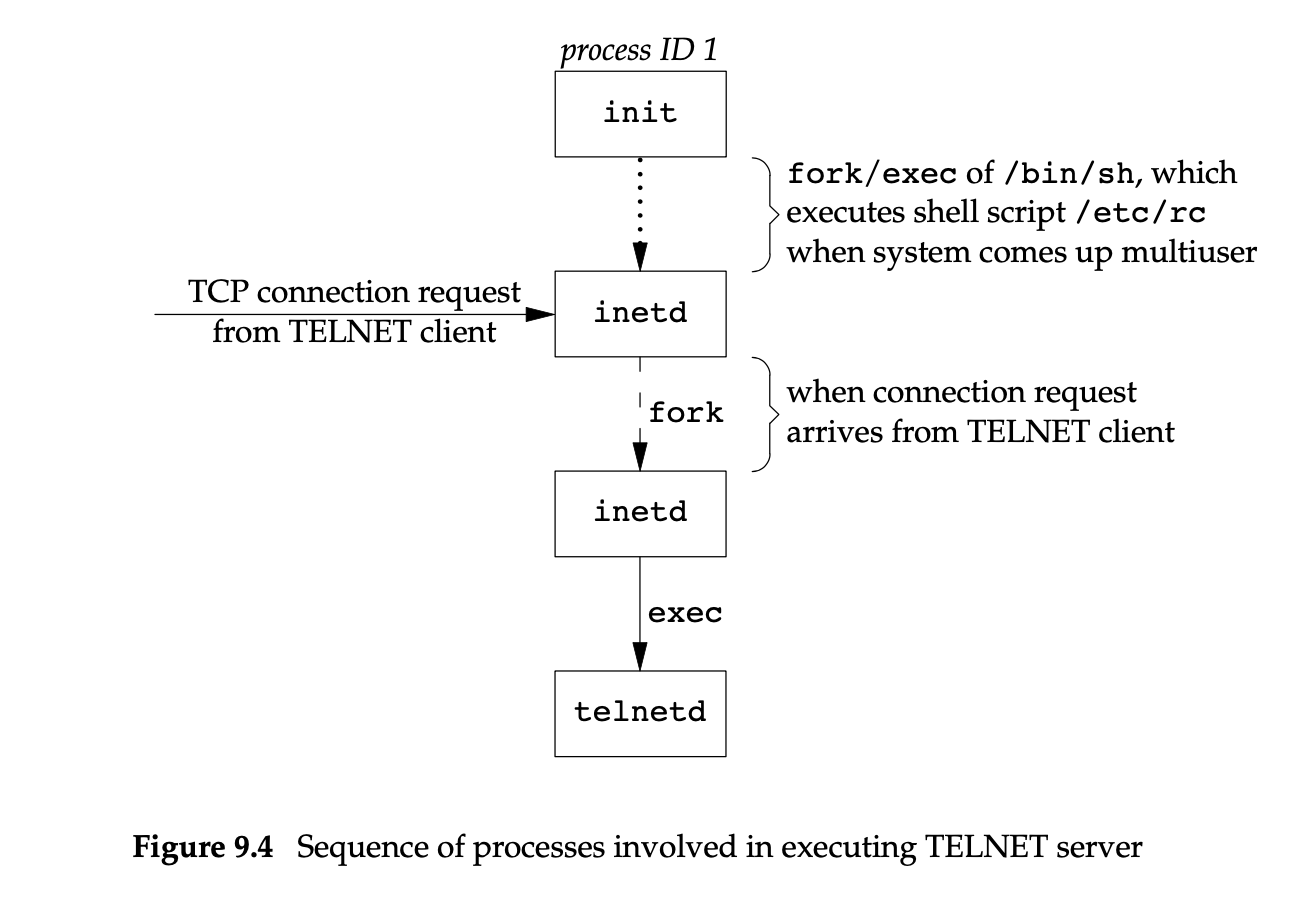

inetd (a.k.a Internet superserver) waits for network connections and spawn appropriate service program.

Mac OS X Network Logins

Essentially the same

Linux Network Logins

xinetd instead of inetd

Process Group

A process group is a collection of one or more processes, usually associated with the same job (job control is discussed in Section 9.8), that can receive signals from the same terminal.

A process group lifetime begins when created and ends when the last remaining process leaves the group.

Get process group ID

#include <unistd.h>
pid_t getpgrp(void);
                        // Returns: process group ID of calling process

Join or create a process group

#include <unistd.h>
int setpgid(pid_t pid, pid_t pgid);
                        // Returns: 0 if OK, −1 on error

The process group ID is the leader’s process ID.

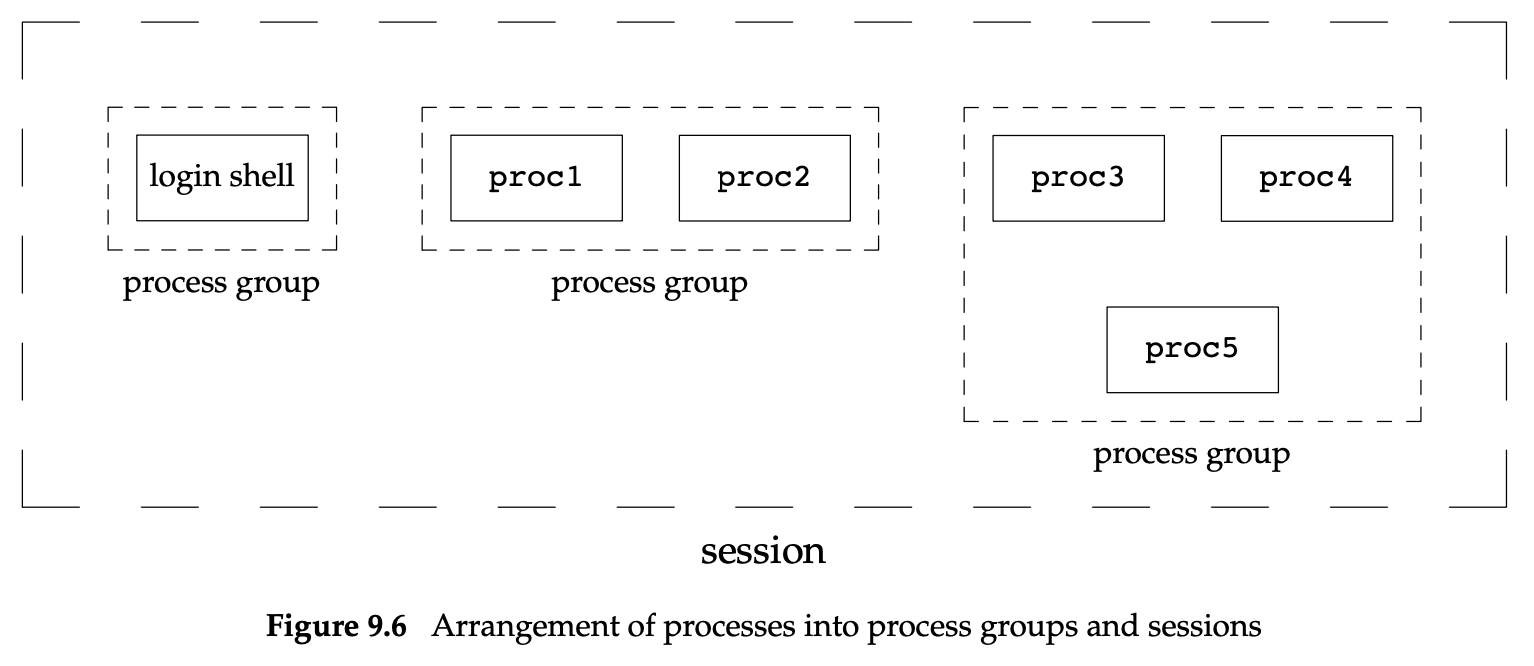

Session

proc1 | proc2 &
proc3 | proc4 | proc5

Create a session

#include <unistd.h>
pid_t setsid(void);
                    // Returns: process group ID if OK, −1 on error

Calling process becomes session leader
Also the leader of new process group
getsid return the leader’s process group ID

NOTES

A process automatically joins a process group at creation via parent inheritance of PGID.
A process group is created by a successful call of setpgid(2) with pgid = pid:
- setpgid(0, 0) or setpgid(getpid(), getpid()): create a group for the calling process itself. The caller becomes the group leader.
- setpgid(child_pid, child_pid);: create a group for a child process and name the child the group leader. (Allowed only before the child execs or runs independently.)
A process group leader cannot leave (abandon) its group and join another group. setpgid(pid, pgid) fails with EPERM if the target process whose PID is pid is already a process group leader.
A process, which is not a leader, can be moved to another existing process group in the same session by calling setpgid(2).
- If pgid != pid and pgid does not correspond to an existing group in the same session, the kernel returns EINVAL.
- The pgid argument may be the PID of any process in the target group (not necessarily the leader), but the group must already exist.
In a shell terminal, a session is created by a process calling setsid() which creates a new process group, the calling process becomes the group leader and the session leader (SID=PID, PGID=PID). The call detaches the process from the controlling terminal (if any).
- Daemons typically call setsid(2) to detach from the terminal so they don’t get killed when you log out or press Ctrl-C.
A session leader cannot leave (abandon) its session.
The relationship between a process and a session is formed:
- at process creation (fork(2)) via parent inheritance of SID and PGID
- at session creation (setsid(2)) when the process becomes the session leader.
The only way for a process to leave its current session is to create a new session and becomes its leader (via setsid(2)).
A child process can have a different session ID from its parent’s when:
- The original parent creates a new session for itself (calls setsid()).
- The child itself calls setsid() to create a new session.
- When a parent exits, its orphaned children are reparented to init (PID 1), but their session ID does not change.

int main(int argc, char *argv[]) {
  pid_t pid;

  pid_t sid = getsid(0); // get current session id
  printf("current session id: %d\n", sid);

  if ((pid = fork()) < 0) {
    my_perror("error: fork");
  } else if (pid == 0) { // child
    assert(getsid(0) == sid);
    printf("I'm child %d, my parent %d, my PGID %d, my SID %d\n",
           getpid(), getppid(), getpgid(0), getsid(0));

    printf("I'm child, I'm gonna create a grandchild for my parent.\n");
    if ((pid = fork()) < 0) {
      my_perror("error: fork grandchild");
    } else if (pid == 0) { // grandchild
      printf("I'm grandchild %d, my parent %d, my PGID %d, my SID %d\n",
             getpid(), getppid(), getpgid(0), getsid(0));
      sleep(3);
      printf("I'm grandchild %d, my parent %d, my PGID %d, my SID %d\n\n",
             getpid(), getppid(), getpgid(0), getsid(0));
      return 0;
    }
    sleep(1);
    printf("I'm child, I'm gonna create a new session for myself\n");
    sid = setsid();
    assert(getsid(0) == sid);
    printf("I'm child %d, my parent %d, my PGID %d, my SID %d\n",
           getpid(), getppid(), getpgid(0), getsid(0));
    sleep(5); // wait for parent exiting.
    printf("I'm child %d, my parent %d, my parent's SID %d, my PGID %d, my SID %d\n\n",
           getpid(), getppid(), getsid(getppid()), getpgid(0), getsid(0));
    return 0;
  } else { // parent
    assert(getsid(0) == sid);
    sleep(2);
    printf("I'm parent %d, my PGID %d, my SID %d\n",
           getpid(), getpgid(0), getsid(0));
  }

  return 0;
}

/*
> ./Debug/procgrp/sessid
current session id: 49433
I'm child 2716, my parent 2715, my PGID 2715, my SID 49433
I'm child, I'm gonna create a grandchild for my parent.
I'm grandchild 2717, my parent 2716, my PGID 2715, my SID 49433
I'm child, I'm gonna create a new session for myself
I'm child 2716, my parent 2715, my PGID 2716, my SID 2716
I'm parent 2715, my PGID 2715, my SID 49433
> I'm grandchild 2717, my parent 2716, my PGID 2715, my SID 49433

I'm child 2716, my parent 1, my parent's SID 1, my PGID 2716, my SID 2716
>

 */

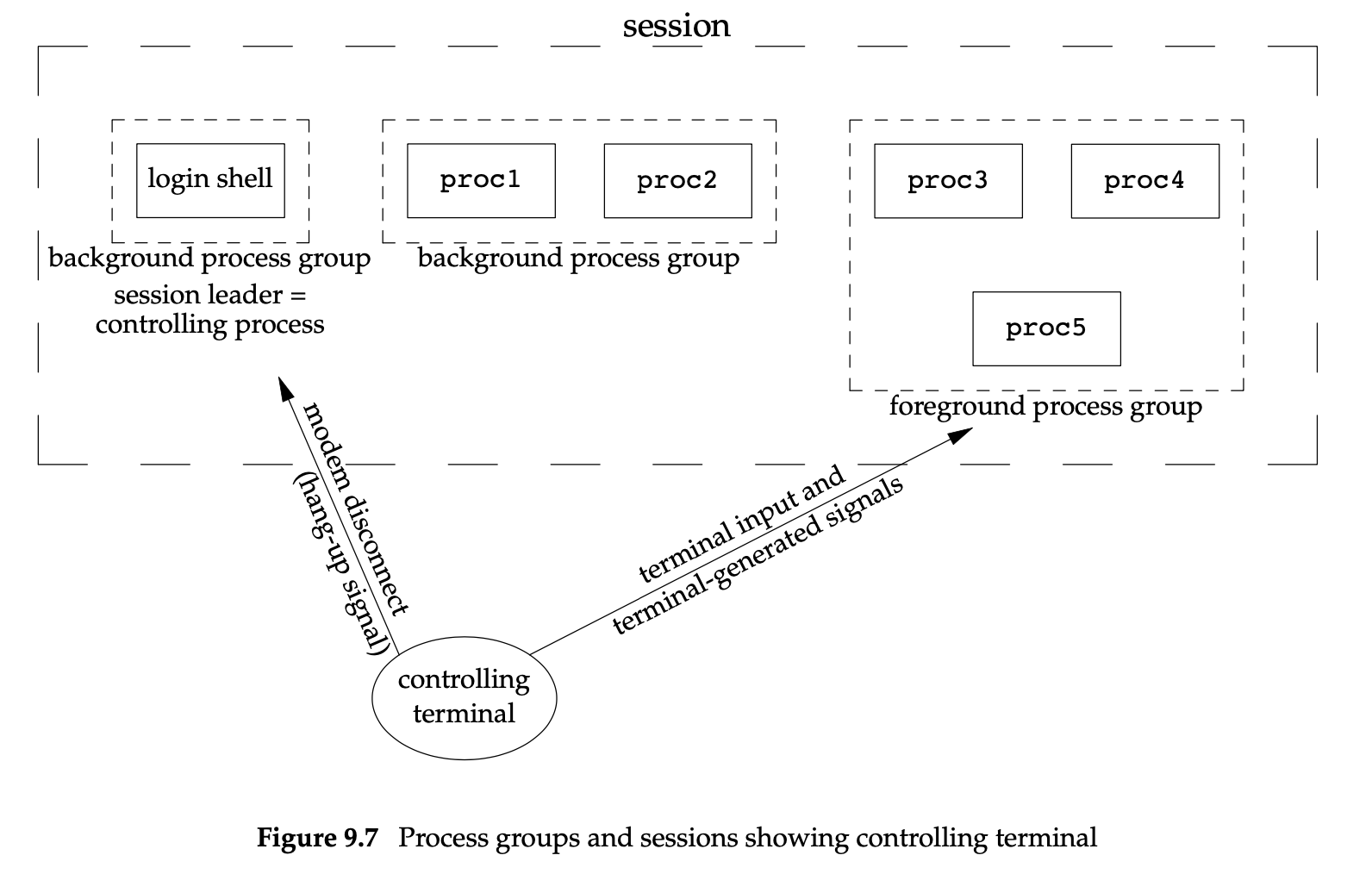

Controlling Terminal

There are times when a program wants to talk to the controlling terminal, regardless of whether the standard input or standard output is redirected. The way a program guarantees that it is talking to the controlling terminal is to open the file /dev/tty.
