Ch08 Process Control

rltyty included in IT
   1676 words

Process Identifier (PID)

  • Unique, non-negative integer.
  • PID 0 process: the scheduler process, the swapper, part of the kernel, a system process.
  • PID 1 process: the init process, invoked by the kernel at the end of bootstrap procedure. The program file is launchd on macOS, systemd on Linux, replacing the old version /etc/init.
    • /sbin/launchd (macOS), /sbin/init -> /lib/systemd/systemd (Linux)

How fork(2) is typically implemented in a Unix or Linux kernel?

#include <unistd.h>
pid_t fork(void);
    // Returns: 0 in child, process ID of child in parent, −1 on error

It’s quite sophisticated, primarily relying on a technique called Copy-on-Write (CoW) for efficiency.

1. The Goal of fork()

fork() creates a new process (the child process) that is an almost exact duplicate of the calling process (the parent process). Both processes continue execution from the point of the fork() call, but with different return values:

  • The parent receives the Process ID (PID) of the new child.
  • The child receives 0.
  • Both processes have their own independent memory space, but they initially share many resources efficiently.

2. Key Steps in Kernel Implementation:

a. Creating a New Process Control Block (PCB)

  • The kernel allocates memory for a new task_struct (Linux’s PCB equivalent) for the child process.
  • Most fields from the parent’s task_struct are copied directly to the child’s. This includes:
    • Process state (e.g., running, sleeping{intr/unintr}, stopped, zombie)
    • CPU registers (copied from the parent’s context at the time of the fork call)
    • Scheduling information
    • Signal handlers
    • Resource limits
    • Current working directory
    • Root directory

b. Assigning a Unique PID

  • A new, unique Process ID (PID) is generated and assigned to the child process.

c. Virtual Memory Management (Copy-on-Write - CoW)

This is the most critical and complex part for efficiency:

  • Duplicating Page Tables: Instead of physically copying all of the parent’s memory pages (which could be gigabytes), the kernel duplicates the page tables of the parent process for the child.
  • Marking Pages Read-Only: All the memory pages in both the parent’s and child’s virtual address spaces that correspond to the original parent’s writable memory (e.g., data segment, heap, stack) are marked as read-only in both sets of page tables. They initially point to the same physical memory frames.
  • Handling Writes (Page Faults):
    • If either the parent or the child attempts to write to one of these shared, read-only pages, a page fault occurs.
    • The kernel’s page fault handler intercepts this.
    • It then allocates a new physical memory page for the process that attempted the write.
    • The content of the original shared page is copied to this new physical page.
    • The faulting process’s page table entry for that virtual address is updated to point to the new, private physical page, and the permission is set back to writable.
    • The original shared page remains accessible to the other process (parent or child) as read-only.
  • Efficiency: This means that only pages that are actually modified by either process are duplicated, saving significant memory and time if the child process immediately calls execve() (to run a new program) or if only a small portion of the memory is modified.

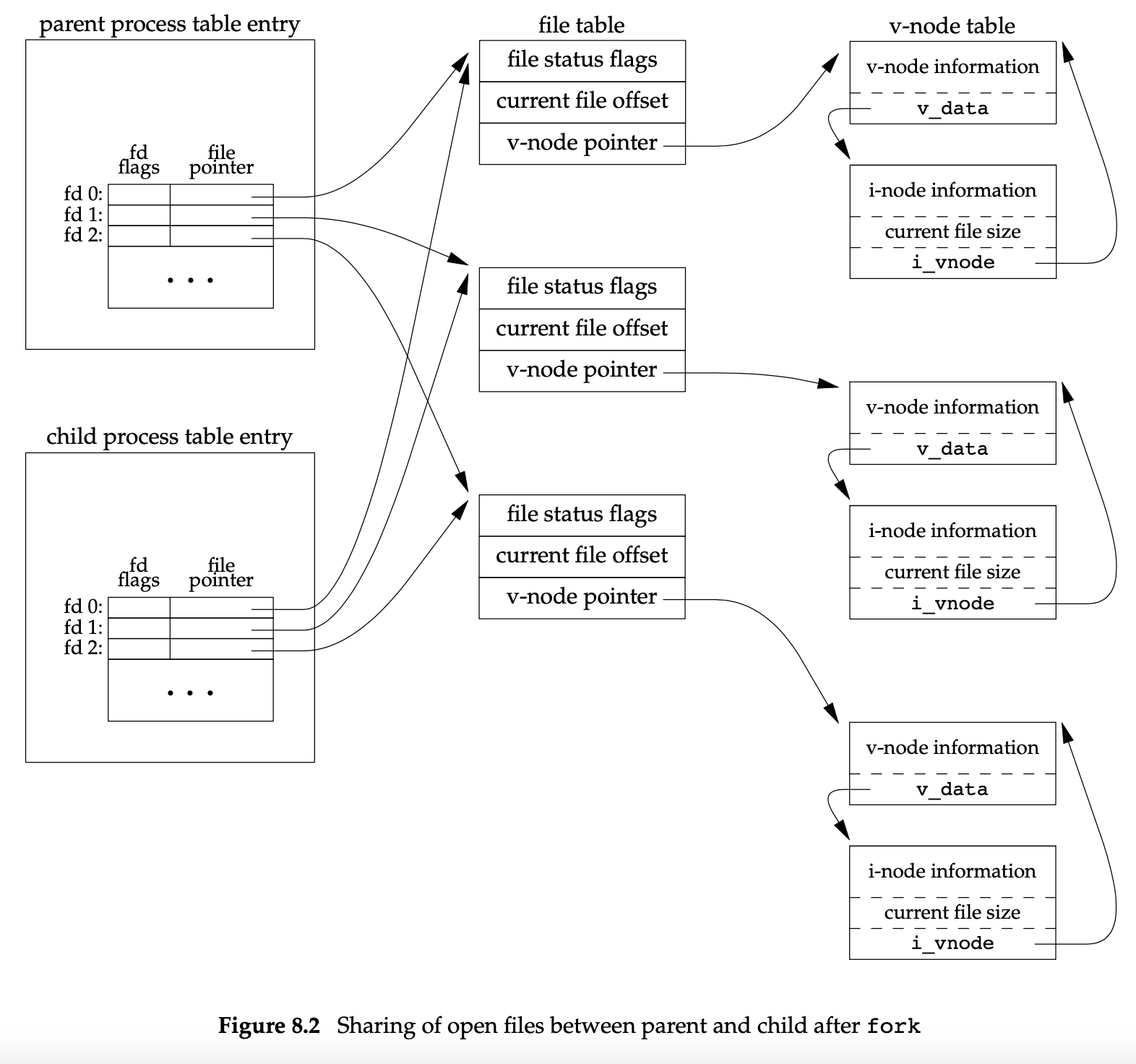

d. File Descriptors

  • The parent’s file descriptor table is duplicated for the child. However, the entries in the child’s table point to the same underlying file table entries as the parent.
  • This means parent and child share:
    • The same open file (e.g., a file on disk).
    • The same file offset (where the next read/write will occur).
    • The same file status flags.
  • If one process reads from a shared file descriptor, the file offset advances for both. If one process closes a file descriptor, the kernel only decrements the reference count for the underlying file table entry; the file is only truly closed when the last reference count drops to zero.

./images/Sharing of open files between parent and child after fork.png

e. Return to User Space

  • In the child process, the kernel sets the return value of the fork() system call to 0 before allowing it to resume execution in user space.
  • In the parent process, the kernel sets the return value of the fork() system call to the child’s PID.

3. Simplified Flow:

  1. User calls fork() -> Enters kernel via system call trap.
  2. Kernel duplicates task_struct: Creates a new PCB for the child.
  3. Kernel duplicates page tables: Child’s page tables point to same physical pages as parent, marked read-only.
  4. Kernel duplicates file descriptors: Child’s FDs point to same file table entries.
  5. Kernel sets child’s return value to 0.
  6. Kernel sets parent’s return value to child’s PID.
  7. Both parent and child processes are now runnable. The scheduler can pick either to run.

This highly optimized implementation allows fork() to be a very fast operation in most cases, especially when it’s immediately followed by an execve() call (the fork-exec model), as very little memory copying is needed.

Two typical use of fork():

  • Duplicate a process, e.g. network server (the master waits for requests from client, calls fork() and lets the children handle the incoming requests, goes back to waiting for next requests)

  • Execute a different program, e.g. shell (the child does an exec() right after it returns from fork().

    • spawn is a concept to combine fork() and exec() into one operation.

fork(2) symbol resolution path (glibc)

user code
   ↓
unistd.h (prototype: fork())
   ↓
fork (public symbol in libc.so, weak alias)
   ↓
__libc_fork (implementation: run handlers, call _Fork)
   ↓
_Fork (generic wrapper in posix/_Fork.c)
   ↓
clone.S (arch-specific syscall stub)
   ↓
kernel (do_fork / kernel_clone in linux-6.1.147/kernel/fork.c)

exec() functions

./images/Relationship of the seven exec functions.png

wait() and waitpid()

#include <sys/wait.h>
pid_t wait(int *statloc);
pid_t waitpid(pid_t pid, int *statloc, int options);
            // Both return: process ID if OK, 0 (see later), or −1 on error

wait() can block the caller until a child terminates, whereas waitpid() has an option that prevents it from blocking.

wait() family functions return -1 and set ECHILD when the caller has no children (or being unwaited for).

A zombie process or defunct process is a process that has completed execution (via the exit system call) but still has an entry in the process table: it is a process in the “terminated state”. This occurs for the child processes, where the entry is still needed to allow the parent process to read its child’s exit status: once the exit status is read via the wait system call, the zombie’s entry is removed from the process table and it is said to be “reaped”.

int main(int argc, char *argv[]) {
  pid_t pid;

  if ((pid = fork()) < 0) {
    my_perror("error: fork()");
  } else if (pid == 0) {  // child
    printf("I'm a child (PID %d), my parent (PPID %d). I'll become a zombie!\n\n",
           getpid(), getppid());
    sleep(2);
  } else {  // parent
    printf("\nI'm a parent (PID %d). I have a child (PID %d), it is a zombie.\n",
           getpid(), pid);
    sleep(3);
    char *cmd = (char*) malloc(25);
    sprintf(cmd, "ps -o pid,ppid,state,time,utime,etime,command -p %d", pid); // show the child's state
    system(cmd);
  }
  return 0;
}

/*
Sample output:

:!Debug/procctl/zombie
I'm a child (PID 48899), my parent (PPID 48898). I'll become a zombie!

  PID  PPID STAT COMMAND
48899 48898 Z    (zombie)

I'm a parent (PID 48898). I have a child (PID 48899), it is a zombie.

*/
  • Avoid zombie processes by calling fork twice
const char * const PS_CMD = "ps -o pid,ppid,state,command -p %d";
const char * const ZOMBIE_PID_FILE = "./tmp/data/procctl/zombie.pid";
int main(int argc, char *argv[]) {
  pid_t pid;

  if ((pid = fork()) < 0) {
    my_perror("error: fork()");
  } else if (pid == 0) {  // child
    if ((pid = fork()) < 0) {
      my_perror("error: fork()");
    } else if (pid == 0) {  // grandchild
      sleep(5);
    } else {  // child
      int fd = open(ZOMBIE_PID_FILE, O_WRONLY|O_CREAT|O_TRUNC, FILE_MODE);
      if (fd < 0) {
      my_perror("error: child PID[%d]: open()", getpid());
      } else {
        char buf[10] = {0};
        sprintf(buf, "%d", pid);
        if (write(fd, buf, strlen(buf)) < 0) { // write grandchild pid to file
          my_perror("error: write()");
        };
      }
      _exit(0);
    }
  } else {  // parent
    sleep(3);
    printf("No zombie, but orphan adopted by init.\n");
    int fd = open(ZOMBIE_PID_FILE, O_RDONLY);
    if (fd < 0) {
      my_perror("error: parent PID[%d]: open()", getpid());
    } else {
      char buf[10] = {0};
      int n;
      if ((n = read(fd, buf, sizeof(buf))) < 0) {
        my_perror("error: read");
      } else {
        pid = atoi(buf);
        printf("grandchild: PID[%d]\n", pid);   // read grandchild pid
        char *cmd = (char *)malloc(25);
        sprintf(cmd, PS_CMD, pid);
        system(cmd);
        free(cmd);
      }
    }
  }
  return 0;
}

/*
Sample output:

> ./Debug/procctl/zombie2
No zombie, but orphan adopted by init.
grandchild: PID[60433]
  PID  PPID STAT COMMAND
60433     1 S+   ./Debug/procctl/zombie2        <-- PPID:1
*/

Examples

system(3) Function

#include <stdlib.h>
int system(const char *cmdstring);

Execute a command string from within a program.

Implemented by calling fork, exec, and waitpid. A sample implementation without signal handling.

int system(const char *cmdstring) {
  pid_t pid;
  int status;
  /* version without signal handling */
  if (cmdstring == NULL) return (1); /* always a command processor with UNIX */
  if ((pid = fork()) < 0) {
    status = -1;         /* probably out of processes */
  } else if (pid == 0) { /* child */
    execl("/bin/sh", "sh", "-c", cmdstring, (char *)0);
    _exit(127); /* execl error */
  } else {      /* parent */
    while (waitpid(pid, &status, 0) < 0) {  // option: 0, blocking mode
      if (errno != EINTR) {
        status = -1; /* error other than EINTR from waitpid() */
        break;
      }
    }
  }
  return (status);
}

/*
Note: waitpid(..., option), when option=0 (blocking mode), wait until the pid
process terminates. while(.. < 0) is for re-wait when there is signal
interrupt causing waitpid() to return -1.
 */

See another version has signal handling in Ch10 Signals

Process Scheduling nice()

A process could choose to run with lower priority by adjusting its nice value (thus a process could be “nice” and reduce its share of the CPU by adjusting its nice value).

The more nice you are, the lower your scheduling priority is. Lower nice values have higher scheduling priority.

#include <unistd.h>
int nice(int incr);
                    // Returns: new nice value − NZERO if OK, −1 on error

#include <sys/resource.h>
int getpriority(int which, id_t who);
          // Returns: nice value between −NZERO and NZERO−1 if OK, −1 on error
int setpriority(int which, id_t who, int value);
                    // Returns: 0 if OK, −1 on error
