Ch05 Standard IO Library

The standard I/O library is specified by the ISO C standard because it’s been implemented on many operating systems. Additional interfaces are defined as extensions to the ISO C standard by the SUS.

The standard I/O library written by Dennis Ritchie around 1975. It centers on streams and handles details like:

• buffer allocation
• performing I/O in optimal-sized chunks

Streams and FILE Objects

When we open or create a file with the standard I/O library, we have associated a stream with a file and get a file pointer FILE *.

A FILE object is a structure contains all the information required by the standard I/O library to manage the stream:

• the file descriptor used for actual I/O (in the context of a UNIX system)
• a pointer to a buffer for the stream
• the size of the buffer
• the number of characters currently in the buffer
• error flag
• etc.

Applications use a file pointer as a handle of a stream to invoke the standard I/O library functions.

Stream orientation: single-byte or wide character sets used (see <wchar.h>)

stdin, stdout and stderr

Three streams are predefined and automatically available to a process. They are referred through predefined FILE* pointers stdin, stdout, and stderr. The corresponding underlying file descriptors are STDIN_FILENO, STDOUT_FILENO, STDERR_FILENO.

Buffering

The goal of the buffering is to use the minimum number of read and write calls.

Three types of buffering

Fully buffered

Actual I/O takes place when the standard I/O buffer is filled. Files residing on disk are normally fully buffered.

The term flush describes the writing of a standard I/O buffer. A buffer can be flushed automatically when a buffer fills, or we can call fflush to flush a stream.

Line buffered

Actual I/O takes place when a new line is encountered on input or output. This is typically used on a stream that refers to terminal (TTY, character special file).

The I/O may take place when:

• A buffer is filled before receives a newline
• Input is requested through:
  • an unbuffered stream
  • a line-buffered stream (requested by the kernel), all the line-buffered output stream are flushed

Unbuffered

Actual I/O take place as many times as the number of characters to input or output.

Most implementations default to the following types of buffering:

• stderr: always unbuffered
• all other streams are:
  • line-buffered, if refer to a terminal device
  • fully-buffered, otherwise

Example:

• Running a command in a terminal, the stdin and stdout are line-buffered.
• Redirect the output of a command to a file, the stdout is fully-buffered.

#include <stdio.h>
#include <stdlib.h>
int main(int argc, char *argv[]) {
  printf("Main process says Hi!\n");
  system("date");   // spawn: fork, exec, waitpid
  return 0;
}

> ./Debug/stdio/buffer
Main process says Hi!
Sat Aug 16 12:15:16 CST 2025

> ./Debug/stdio/buffer > log
> cat log
Sat Aug 16 12:16:05 CST 2025
Main process says Hi!

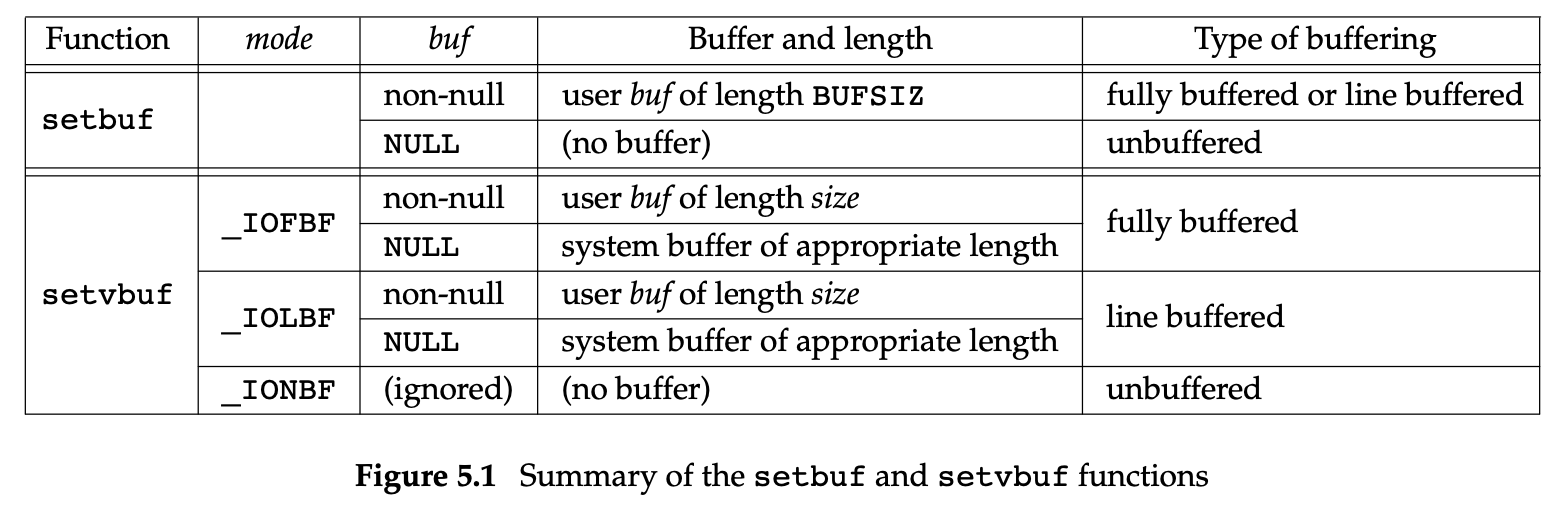

Custom buffering

#include <stdio.h>
void setbuf(FILE *restrict fp, char *restrict buf );
int setvbuf(FILE *restrict fp, char *restrict buf, int mode, size_t size);
                                        // Returns: 0 if OK, nonzero on error

fread(3)/fwrite(3) and fscanf(3)/fprintf(3)

• fread(3) / fwrite(3):

  • I/O type : Unformatted (binary) I/O
  • Unit : Objects of given size (often bytes, but can be larger if size > 1)
  • Behavior : Direct copy between memory and file with no conversion or interpretation
  • Usage : Structs, arrays, images, serialized data, any binary format

• fscanf(3) / fprintf(3):

  • I/O type : Formatted (text) I/O
  • Unit : Characters, parsed/printed according to format string
  • Behavior : Converts between internal representation and textual form
  • Usage : Human-readable files, logs, configuration, CSV, text protocols

Examples

#include <assert.h>
#include <stdio.h>
void test_character_stream()
{
  const char * const file = "tmp/data/stdio/charstream";
  FILE *fp = fopen(file, "w+");
  fprintf(fp, "%d", 16384);

  rewind(fp);

  int a;
  fscanf(fp, "%d", &a);
  assert(a == 16384);

  fclose(fp);
}

void test_byte_stream()
{
  const char * const file = "tmp/data/stdio/bytestream";
  FILE *fp = fopen(file, "w+");
  int a = 16384;
  fwrite(&a, sizeof(int), 1, fp);

  rewind(fp);

  int b;
  fread(&b, sizeof(int), 1, fp);
  assert(b == 16384);

  fclose(fp);
}

int main(int argc, char *argv[]) {
  test_character_stream();
  test_byte_stream();
  return 0;
}

/*

> hexdump tmp/data/stdio/charstream
0000000 3631 3833 0034
0000005
> hexdump -c tmp/data/stdio/charstream
0000000   1   6   3   8   4
0000005
> cat tmp/data/stdio/charstream
16384%
> hexdump tmp/data/stdio/bytestream
0000000 4000 0000
0000004
> hexdump -c tmp/data/stdio/bytestream
0000000  \0   @  \0  \0
0000004
> cat tmp/data/stdio/bytestream
@%                                    # @: ascii (0x40)

 */
