Introduction

5 unbuffered I/O functions
- open, read, write, lseek, close
- Unbuffered means each read or write invokes a system call in the kernel. They are not part of ISO C, but are part of POSIX.1 and the SUS.
Topics on sharing resources among mulitple processes
- Atomic operation about file I/O and the arguments to the open function.
- How files are shared among multi-processes and which kernel structures are invoked.
- dup, fcntl, sync, fsync, ioctl

File Descriptors

To the kernel, all open files are referred to by file descriptors.
Non-negative integer
By convention, UNIX System shells associate fd 0 with the stdin of a process, fd 1 with the stdout of a process, fd 2 with stderr.
STDIN_FILENO, STDOUT_FILENO, STDERR_FILENO, defined in <unistd.h>
range from 0 to OPENMAX - 1 (for macOS, the limit is 256 ~ 10240)

open and openat Functions

#include <fcntl.h>
int open(const char *path, int oflag, ... /* mode_t mode */ );
int openat(int fd, const char *path, int oflag, ... /* mode_t mode */ );
// Return: file descriptor if OK, -1 on error

oflag, formed by ORing one or more of the following constants
- required: exactly one of the five constants:
  - O_RDONLY, O_WRONLY, O_RDWR, O_EXEC, O_SEARCH
- optional:
  - O_APPEND, O_CLOEXEC, O_CREAT, O_DIRECTORY, O_EXCL, O_NOTTY O_NOFOLLOW, O_NOBLOCK, O_SYNC, O_TRUNC, O_TTY_INIT, O_DSYNC, O_RSYNC
The fd returned by open and openat is guaranteed to be the lowest-numbered unused descriptor.
openat == open except the path parameter specifies a relative path and the fd parameter != AT_FDCWD (start at the current working directory). In this case the file to be opened is determined relative to the directory associated with the fd instead of the cwd.
openat to address two problems:
- give threads a way to use relative pathnames to open files in directories other than cwd, since all threads in the same process share the same working directory.
- avoid TOCTTOU (time-of-check-to-time-of-use) errors
  - vulnerability in-between two non-atomic calls, the file can be changed between “check()” and “use()”, thereby invalidating the results of the first call (check()), leading to an error or opening up a security hole.
filename and pathname truncation
BSD-derived(including macOS) and Linux always return an error ENAMETOOLONG if _POSIX_NO_TRUNC is in effect (otherwise silently truncated). Modern file systems support a maximum(NAME_MAX) of 255 chars for filename and a maximum(PATH_MAX) of 1024 chars for pathname.

creat Function (obsoleted by open(2))

This is equivalent to

open(path, O_WRONLY | O_CREAT | O_TRUNC, mode);

Before open(2) was provided, if we were creating a temporary file that we want to write and then read back, we had to creat, close, open. Now just

open(path, O_RDWR | O_CREAT | O_TRUNC, mode);

close Function

#include <unistd.h>
int close(int fd);      // Returns: 0 if OK, -1 on error

Closing a file also releases any record locks that the process may have on the file. When a process terminates, all of its open files are closed automatically by the kernel.

lseek Function

Every open file has an associated “current file offset”, normally $\ge 0$, which measures the number of bytes from the beginning of the file. Read and write operations start at the offset and cause the offset to be incremented by the number of bytes read or written. By default, the offset is initialized to 0 when a file is opened, unless the O_APPEND option is specified.

An open file’s offset can be set explicitly by call lseek.

#include <unistd.h>
off_t lseek(int fd, off_t offset, int whence);  // Returns: new file offset if
                                                // OK, -1 on error

The offset to reposition depends on whence:

SEEK_SET, set to offset + 0
SEEK_CUR, set to offset + cur
SEEK_END, set to offset + end (offset + the file size)
SEEK_HOLE, set to the start of the next hole whose position $\ge$ offset
SEEK_DATA, set to the start of the next non-hole whose position $\ge$ offset

offset can be negative, and the current offset can also be negative for certain devices, but for regular files the current offset must be non-negative.

Seeking zero bytes from the current position can be used to determine:

the current offset
if a file is capable of seeking. If fd refers to a pipe, FIFO, or socket, lseek sets errno to ESPIPE and returns -1.

off_t currpos;
currpos = lseek(fd, 0, SEEK_CUR);

A file’s current offset can be greater than the file’s current size, in which case the next write to the file will extend the file. (so called “create a hole in a file”). Any bytes in the hole, i.e. have not been written, are read back as 0.

A hole in a file isn’t required to have storage backing it on disk. Depending on the file system implementation, when you write after seeking past the end of a file, new disk blocks might be allocated to store the data, but there is no need to allocate blocks for the data between the old end of file and the location where you start writing.

Use od to dump a file containing holes. See Utils

od -c file.hole

For more details on holes in a file, see Ch04 File System

Use getconf to retrieve standard configuration variables

getconf -v POSIX_V6_LP64_OFF64 FILESIZEBITS ./aaa
56

read Function

The read operation starts at the file’s current offset. Before a successful return, the offset is incremented by the number of bytes actually read.

#include <unistd.h>
ssize_t read(int fd, void *buf, size_t nbytes);
// Returns: number of bytes read, 0 if end of file, -1 on error

ssize_t signed, size_t unsigned

write Function

The write operation starts at the file’s current offset. If the O_APPEND option was specified when the file was opened, the file’s offset is set to the current end of file before write. After a successful write, the file’s offset is incremented by the number of bytes actually written.

ssize_t write(int fd, const void *buf, size_t nbytes);
// Returns: number of bytes written if OK, -1 on error

I/O Efficiency

// read from standard input and writes to standard output

...
#define BUFFSIZE 4096
...
while ((n = read(STDIN_FILENO, buf, BUFFSIZE)) > 0)
    if (write(STDOUT_FILENO, buf, n) != n)
        err_sys("write error");

...

Run the above program to copy file content by exploiting UNIX system shell’s I/O redirection. The program doesn’t have to open the input and output files.

The program also doesn’t need to close the input file or output file, cause the UNIX kernel will close all open file descriptors in a process when the process terminates.

# copy infile's content to outfile
./a.out < infile > outfile

CPU time profiling tests show that 4K buffer is a good choice. (Linux ext4 file system with 4096-byte blocks.

core dump

When programs read and write files, the operating system will try to cache the file incore, incore means in main memory. Back in the day, a computer’s main memory was built out of ferrite core.

read-ahead to improve performance.

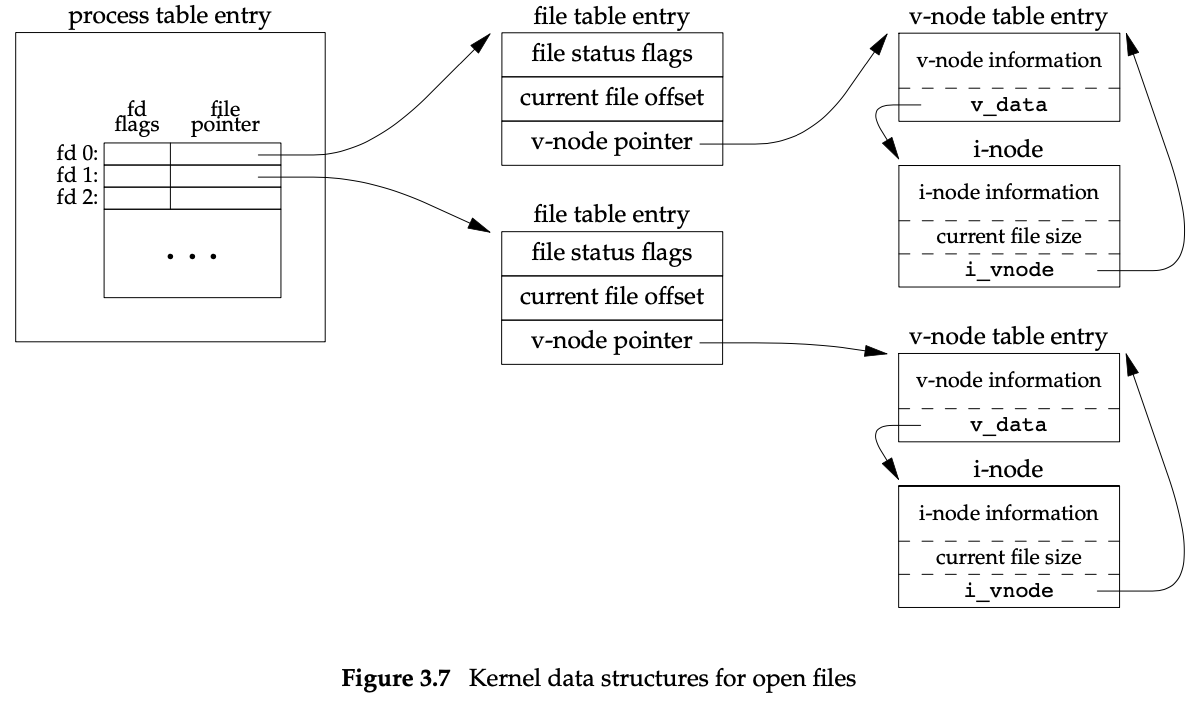

The kernel uses 3 data structures to represent an open file, and the relationships among them determine the effect one process has on another process with regard to file sharing.

A per-process open file descriptor table in the process table. This entry is a table of open file descriptors, with one entry per descriptor.
A file descriptor entry contains:
- file descriptor flags (FD_CLOEXEC)
- a pointer to a file table entry (also called file description)
A kernel-wide open file table.
- Each successful open(2) system call create a file table entry:
  - file status flags, such as read, write, append, sync and non-blocking
  - current file offset
  - a pointer to the v-node table entry for the file
Each open file (or device) has a v-node structure that contains information about the type of file and pointers to functions that operate on the file. For most files, the v-node contains the i-node for the file. This info is read from disk when the file is opened.
A i-node contains the owner, the size, pointers to where the actual data blocks are located on disk, and so on.

Component	Scope	Key Contents
FD Table	Per-process	FD flags, pointer to file table entry.
File Table	Kernel-wide	File offset, status flags, pointer to v-node.
V-Node	Kernel-wide	File type, operations, pointer to i-node (or FS-specific data).
I-Node	Filesystem	Metadata, data block pointers (or APFS B-tree object).

  ---
title: Sharing by dup(2) (in-process), by fork(2) (among parent & children processes)
---
flowchart TD
    A[Process Parent FD_X] --> B[File Table Entry]
    C[Process Parent FD_XDUP] --> B[File Table Entry]
    D[Process Child_1 FD_X] --> B
    E[Process Child_2 FD_X] --> B
    B --> F[V-Node]

  ---
title: Multiple open(2) of same file by same process
---
flowchart TD
A[Process A FD_X] --> O[File Table Entry X]
B[Process A FD_Y] --> P[File Table Entry Y]
C[Process A FD_Z] --> Q[File Table Entry Z]
O --> F[V-Node]
P --> F
Q --> F

NOTE

Linux has no v-node, a generic i-node is used.
The table of open descriptors can be stored in user area (a separate process structure that can be paged out) instead of the process table.

The v-node was invented to provide support for multiple file system types on a single computer system, done independently by Bell Labs and Sun MS. Sun called it Virtual File System(VFS) .

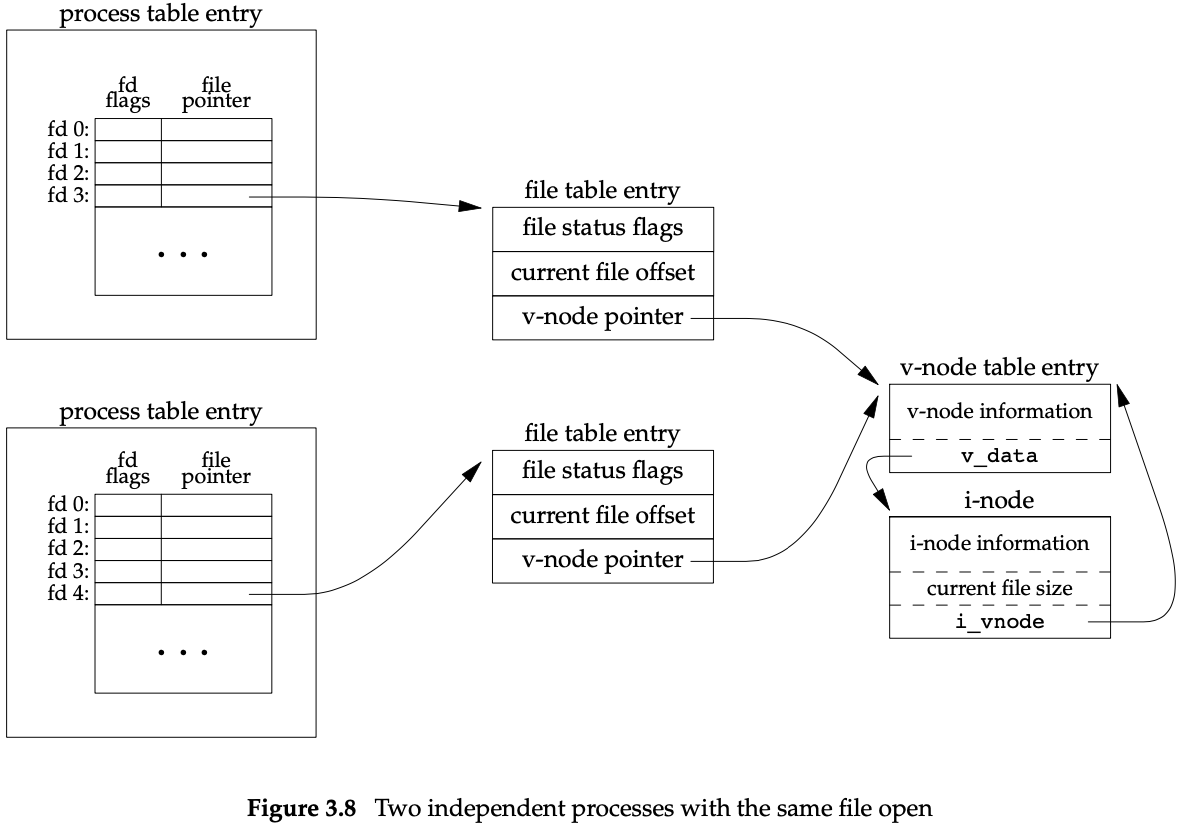

Two independent processes with the same file open

Each process has its own open file table entry for the same open file, but only a single v-node table entry for a given file.

After each write, the current file offset (CFO) in the file table entry is incremented by the number of bytes written. If the current file offset exceeds the current file size, the current file size in the i-node table entry is set to the current file offset.
If a file is opened with the O_APPEND flag, a corresponding flag is set in the file status flags of the file table entry. Each time a write is performed for a file with this append flag set, the CFO in the file table entry is first set to the current file size from the i-node table entry. This forces every write to be appended to the curren end of file.
NOTE open with O_APPEND only set file status flags but not the CFO in the file table entry.
lseek set and return the CFO in the file table entry. No I/O takes place. When lseek sets SEEK_END, the CFO is set to the current file size from the i-node table entry.

Multiple file descriptor entries can point to the same file table entry.

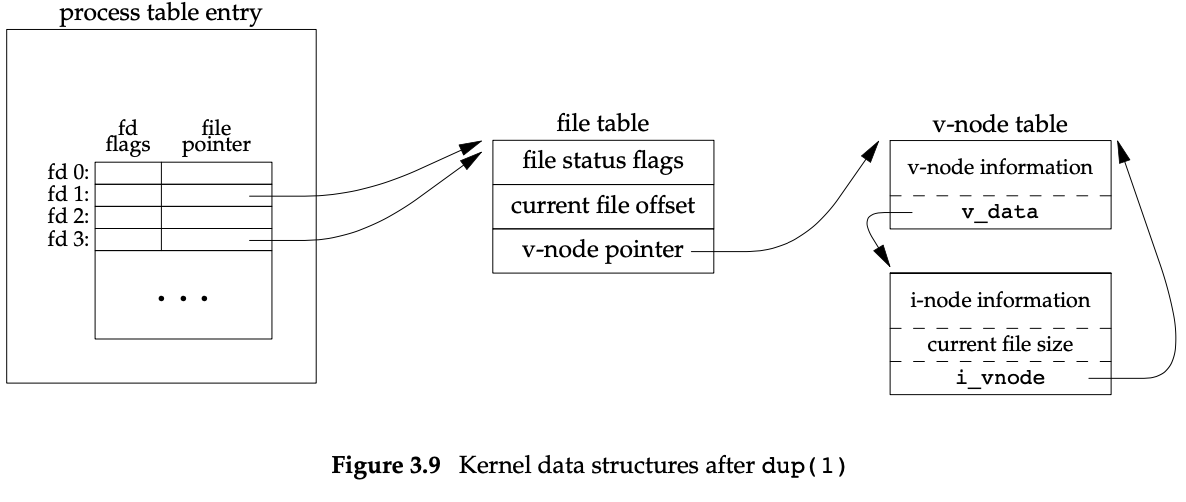

dup(2)
after a fork(2), the parent and the child share the same file table entry for each open file descriptor.

Differences between file descriptor flags (fdf) and file status flags (fsf).

fdf: apply only to a single descriptor in a single process
fsf: apply to all descriptors in any process that point to the file table entry.

Atomic Operations

Any operation that requires more than one function call cannot be atomic.

Take appending to a file as an example, in older versions of the UNIX System, without O_APPEND support, two calls lseek(2) and write(2) were needed, which is not atomic.

Now, as described above, write(2) is atomic for it positions the file to its current end of file before each write, if the file is opened with O_APPEND. pread(2) / pwrite(2) (seek to offset and I/O) and dup2(2) (close(2) and fcntl(fd, F_DUPFD, fd2)) are all atomic functions.

`pread` and `pwrite` Functions

#include <unistd.h>

ssize_t pread(int fd, void *buf, size_t nbytes, off_t offset);
                    Returns: num of bytes read, 0 if end of file, -1 on error
ssize_t pwrite(int fd, const void *buf, size_t nbytes, off_t offset);
                    Returns: num of bytes written if OK, -1 on error

pread(2)/pwrite(2) is equivalent to calling lseek(2) and read(2)/write(2) except that

No way to interrupt the two operations (Atmoic).
The current file offset keeps unchanged, the same position as before pread(2)/pwrite(2) is called.

Creating a File

if (fd = open(path, O_CREAT|O_EXCL)) < 0) {
    ...
}

Atomic operation refers to an operation that might be composed of multiple steps. Either all the steps are performed (on success) or none are performed (on failure).

In this case, open(2), when called with both flags, performs file existence check and file creation atomically.

dup and dup2 Functions

#include <unistd.h>

int dup(int fd);
int dup2(int fd, int fd2);
                        Both return: new file descriptor if OK, -1 on error

dup(fd); is equivalent to fcntl(fd, F_DUPFD, 0);

Similarly, dup2(fd, fd2); is equivalent to close(fd2); fnctl(fd, F_DUPFD, fd2);, but not exactly, cause:

dup2(2) is an atomic operation, whereas the alternate form involves two calls. It is possible to modify the file descriptors between the close(2) and fnctl(2)
There are some errno differences between dup2(2) and fcntl(2)

sync, fsync, and fdatasync Functions

These functions ensure consistency of the file system on disk with the contents of the buffer cache or the page cache. Make the delayed-write finally write from the kernel to disk.

#include <unistd.h>
int fsync(int fd);
int fdatasync(int fd);
                        Returns: 0 if OK, -1 on error
void sync(void);

sync(2) simply queues all the modified block buffers for writing and returns; it doesn’t wait for the disk writes to take place. It is normally called periodically (usually every 30 seconds) from a system daemon called update(8).

sync(1) or sync(8) command calls the sync(2) function.

fsync(2) refers only to a single file and waits for the disk writes to complete before returning. Used when an application, such as a database, needs to be sure that the modified blocks have been written to the disk.

fdatasync(2), similar to fsync(2), affects only the data portions of a file.

FreeBSD 8.0 doesn’t support fdatasync(2), neither does macOS 12.7.

fcntl Function

The fcntl function can change the properties of a file already open.

#include <fcntl.h>
int fcntl(int fd, int cmd, ... /* int arg */ );
                    Returns: depends on cmd if OK(see following), -1 on error

Five purposes:

Duplicate an existing descriptor (F_DUPFD or F_DUPFD_CLOEXEC)
Get/set file descriptor flags (F_GETFD or F_SETFD)
Get/set file status flags (F_GETFL or F_SETFL)
Get/set asynchronous I/O ownership (F_GETOWN or F_SETOWN)
Get/set record locks (F_GETLK, F_SETLK, or F_SETLKW)

Commands:

F_DUPFD New fd is the lowest-numbered that is not already open, and greater than or equal to the 3rd argument (an integer). It shares the same file table entry as fd, but has its own set of file descriptor flags in which FD_CLOEXEC is cleared.

F_DUPFD_CLOEXEC Same as F_DUPFD except set the FD_CLOEXEC flag associated with the new file descriptor.

F_GETFD F_SETFD Return or set the file descriptor flags. Currently only FD_CLOEXEC is defined. 1 (do close-on-exec), 0 (don’t close-on-exec)

F_GETFL Returns the file status flags for the fd. The five access-mode are mutually exclusive. O_ACCMOD mask must be used to obtain the access-mode bits and then compare the result against the five values.

F_SETFL Only set the last seven flags.

F_GETOWN Get the process ID or process group ID currently receiving the SIGIO and SIGURG signals.

F_SETOWN Set the process ID or process group ID to receive the SIGIO and SIGURG signals. See asynchronous I/O signals.AIO

Ex.

$ ./a.out 0 < /dev/tty
read only
$ ./a.out 1 > temp.foo
$ cat temp.foo
write only
$ ./a.out 1 >> temp.foo
$ cat temp.foo
write only
write only, append
$ ./a.out 2 2>> temp.foo
write only, append
$ ./a.out 5 5<> temp.foo
read write

Ex. set file status flags

void set_fl(int fd, int flags)
{
    val = fcntl(fd, F_GETFL, 0);
    val |= flags;       /* turn on flags */
    fcntl(fd, F_SETFL, val)
}

void clr_fl(int fd, int flags)
{
    val = fcntl(fd, F_GETFL, 0);
    val &= ~flags;       /* turn off flags */
    fcntl(fd, F_SETFL, val)
}

Ex. set O_SYNC flag and do copy file from in to out (Env. macOS 12.7)

set_fl(STDOUT_FILENO, O_SYNC)

With O_SYNC cleared,

mkfile 512m 512m
./test_read_write < 512m > 512m.new  0.07s user 1.33s system 83% cpu 1.692 total

With O_SYNC set, wait write to disk

mkfile 512m 512m
time ./test_read_write < 512m > 512m.new
./test_read_write < 512m > 512m.new  0.09s user 3.43s system 57% cpu 6.133 total

ioctl Function

The ioctl is for miscellaneous device I/O operations. Terminal I/O was the biggest user.

#include <unistd.h>     /* System V */
#include <sys/ioctl.h>  /* BSD and Linux */

int ioctl(int fd, int request, ...);
                            Returns: -1 on error, something else if OK

int ioctl(int fd, unsigned long request, ...); /* FreeBSD 8.0 and macOS */

Additional device-specific headers are required. E.g. <termios.h>

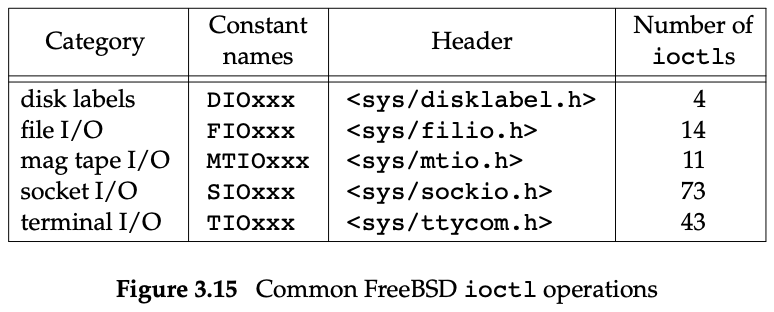

Each device driver can define its own set of ioctl commands. The system, however, provides generic ioctl(2) commands for different classes of devices.

/dev/fd

New systems provide a directory /dev/fd whose entries are files named 0, 1, 2, and so on. Opening the file /dev/fd/n is equivalent to duplicating descriptor n, assuming that descriptor n is open. (“BAD descriptor” error will be reported if n doesn’t exist.)

fd = open("/dev/fd/0", mode);
/* is equivalent to */
fd = dup(0);

Most systems ignore the specified mode, whereas others require that it be a subset of the mode used when the referenced file was originally opened (E.g. macOS).

The Linux implementation of /dev/fd is an exception. It maps file descriptors into symbolic links pointing to the underlying physical file. When you open a /dev/fd/n, you are really opening the file associated with real file. Thus the mode of the new descriptor is unrelated to the mode of the /dev/fd/n.

/dev/stdin -> /dev/fd/0
/dev/stdout -> /dev/fd/1
/dev/stderr -> /dev/fd/2

filter file2 | cat file1 - file2 | lpr

is equivalent to

filter file2 | cat file1 /dev/fd/0 file2 | lpr

Exercises

Q3.1 When reading or writing a disk file, are the function described in this chapter really unbuffered?

A: No. Performance of read or write operations on a file opened with O_SYNC is much slower than that on the same file opened without O_SYNC shows that the system calls in the kernel has buffer or cache. It takes more time for every operation waiting for the underlying disk read or write finish.

When we say unbuffered, we mean “unbuffered in userspace” (to minimize the system call overhead). The data read/written here will go through the kernel’s buffer cache.

See Ex3_1_read_and_write.c

Q3.2 Write your own dup2(2), don’t use fcntl. Be sure to handle errors.

A: Both solutions (recursive & non-recursive) are limited to OPEN_MAX, which is 256 on macOS 12.7 64-bit

Solution 1: use recursive call’s kernel stack.

int recur(int fd, int newfd) {
  /* error path */
  if (fd == -1)
    return -1;

  /* OK path */
  if (fd == newfd)
    return fd;

  int ret = recur(dup(fd), newfd);
  if (close(fd) == -1)
    return -1;
  return ret;
}

int mydup2(int fd, int newfd) {
  /* test if fd is an active, valid file descriptor */
  /*
  char path[128];
  snprintf(path, 128, "/dev/fd/%d", fd);
  if (open(path, O_RDONLY) < 0) {
  */
  int tmpfd = dup(fd);
  if (tmpfd < 0) {
    errno = EBADF;
    return -1;
  }
  if (close(tmpfd) == -1)
    return -1;

  /* test if newfd is a non-negative and not greater than the maximum */
  // allowable number
  long fmax = open_max();
  if ((long)newfd < 0 || (long)newfd > fmax) {
    errno = EBADF;
    return -1;
  }

  /* test if no need to dup */
  if (newfd == fd)
    return fd;

  /* close newfd after all tests pass, ignore inactive newfd */
  if (close(newfd) == -1 && errno != EBADF)
    return -1;

  return recur(dup(fd), newfd);
}

Solution 2: use user stack

int rstack[10240];
int *sp;
#define push(sp, n) (*((sp)++)) = (n)
#define pop(sp) (*--(sp))

int mydup2(int fd, int newfd) {
  /* test if fd is an active, valid file descriptor */
  /*
  char path[128];
  snprintf(path, 128, "/dev/fd/%d", fd);
  if (open(path, O_RDONLY) < 0) {
  */
  int tmpfd = dup(fd);
  if (tmpfd < 0) {
    errno = EBADF;
    return -1;
  }
  if (close(tmpfd) == -1)
    return -1;

  /* test if newfd is a non-negative and not greater than the maximum */
  // allowable number
  long fmax = open_max();
  if ((long)newfd < 0 || (long)newfd > fmax) {
    errno = EBADF;
    return -1;
  }

  /* test if no need to dup */
  if (newfd == fd)
    return fd;

  /* close newfd after all tests pass, ignore inactive newfd */
  if (close(newfd) == -1 && errno != EBADF)
    return -1;

  /* Use stack to save dup2(2)ed fds for later close(2) */
  tmpfd = fd;
  sp = rstack;
  while((tmpfd = dup(tmpfd)) != newfd) {
    if (tmpfd == -1)
      return -1;
    push(sp, tmpfd);
  }
  while(sp > rstack) {
    int fd = pop(sp);
    /* printf("sp=%d, fd=%d\n", (int)(sp-rstack), fd); */
    if (close(fd) != 0)
      return -1;
  }
  return tmpfd;
}

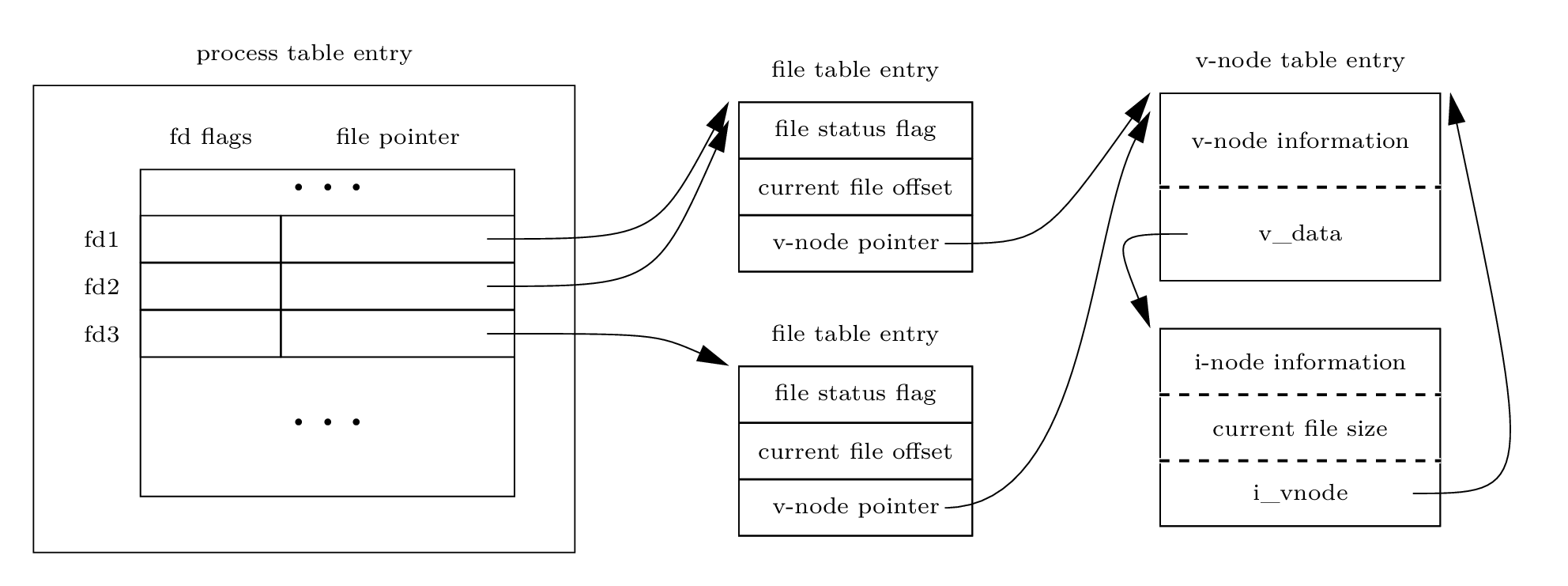

Q3.3 Which fds are affected by an fcntl(2) on fd1 with a command of F_SETFD? Which fds are affected by an fcntl(2) on fd1 with a command of F_SETFL?

A: With F_SETFD, only fd1 is affected. With F_SETFL, both fd1 and fd2 are affected.

Q3.4 The following sequence of code has been observed in various programs:

dup2(fd, 0);
dup2(fd, 1);
dup2(fd, 2);
if(fd > 2)
    close(fd);

A: If fd is 1, after the execution of the above sequence of code, the three file descriptor 0, 1, 2 point to the same file table entry that the fd 1 has been pointing to. If fd is 3, after the execution, all three descriptors point to the file table entry that the fd 3 once pointed before the fd 3 is removed. The if check makes sure that the first three file descriptors are all active and point to the same file table entry.

Q3.5 The Bourne shell, Bash, Ksh notation

digit1>&digit2

says to redirect descriptor digit1 to the same file as descriptor digit2. What is the difference between the two commands shown below?

./a.out > outfile 2>&1
./a.out 2>&1 > outfile

A: 1st command, it says the standard output of ./a.out is redirected to outfile, and the standard error of ./a.out is also redirected to outfile. 2nd command, it says the standard error of ./a.out is redirected to its standard output, and the standard output is redirected to outfile. Concisely speaking, 1st command:

fd = open("outfile", O_WRONLY);
dup2(fd, 1);
dup2(1, 2);  /* dup2(fd, 2);*/

2nd command:

dup(1, 2);
fd = open("outfile", O_WRONLY);
dup2(fd, 1);

Q3.6 If you open a file for read-write with the append flag (O_RDWR|O_APPEND), can you still read from anywhere in the file using lseek? Can you use lseek to replace existing data in the file? Write a program to verify this.

A: random read, yes. random write, no. O_APPEND flags only affects write. For each read, it returns the number of bytes read from the current offset, and move the offset forward that number of bytes. For each write, it will firstly set the current file offset to the value of the current file size retrieved from the i-node table entry. This will force every write to be appended to the current end of file. After write, the number of bytes written will be added to the current file size in the i-node information.

#include "apue.h"
#include <assert.h>
#include <string.h>
#include <fcntl.h>

int main(void)
{
  char *path = "tmp/fileio/3_6.dat";
  int fd = -1;
  if ((fd = open(path, O_RDWR|O_APPEND)) == -1) {
    err_sys("open file [%s] failed.", path);
  }
  assert(0 == lseek(fd, 0, SEEK_CUR));  /* initial current file offset */
  assert(30 == lseek(fd, 0, SEEK_END)); /* initial file size */
  lseek(fd, 5, SEEK_SET); /* set the offset to 5 */
  char rbuf[128];
  assert(5 == read(fd, rbuf, 5)); /* read 5 bytes, move offset forward by 5 */
  assert(0 == strcmp("56789", rbuf));
  assert(15 == lseek(fd, 5, SEEK_CUR)); /* move forward by another 5, to 15 */
  char *wbuf = "hello";
  assert(5 == write(fd, wbuf, strlen(wbuf))); /* write wbuf to file, 5 chars */
  assert(35 == lseek(fd, 0, SEEK_CUR)); /* current file offset is 35, not 20 */
  assert(35 == lseek(fd, 0, SEEK_END)); /* current file size is 35, not 30 */
  return 0;
}

Contents
