Ch02 Unix Standard

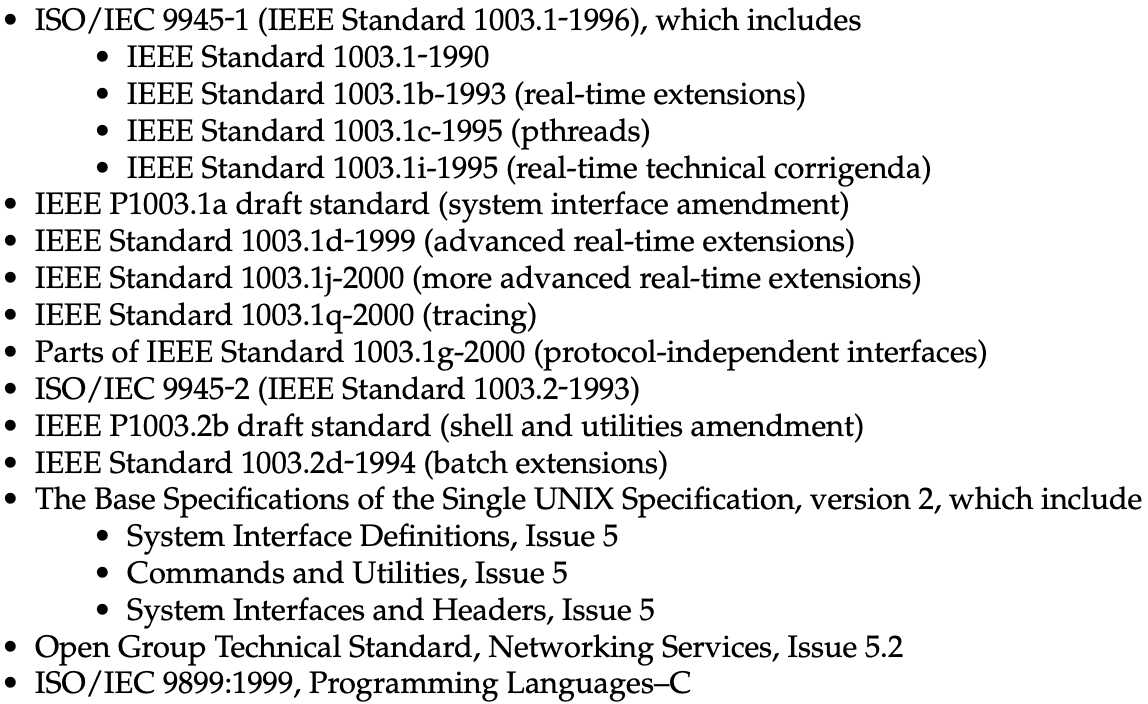

IEEE POSIX 1003.1

POSIX (portable operating system interface)

NOTE: shell and utilities (1003.2)

ISO C Standard

NOTE

On macOS, the headers are under

/Library/Developer/CommandLineTools/SDKs/MacOSX.sdk/usr/include/

The Single Unix Specification(SUS)

A superset of POSIX.1, specifies additional interfaces. POSIX.1 can be seen as the Base Specifications portion of the SUS. POSIX.1-2008 as Issue 7 of the Base Specifications in SUSv4(2010).

• Base Definitions
• System Interfaces
• Shell and Utilities
• Rationale

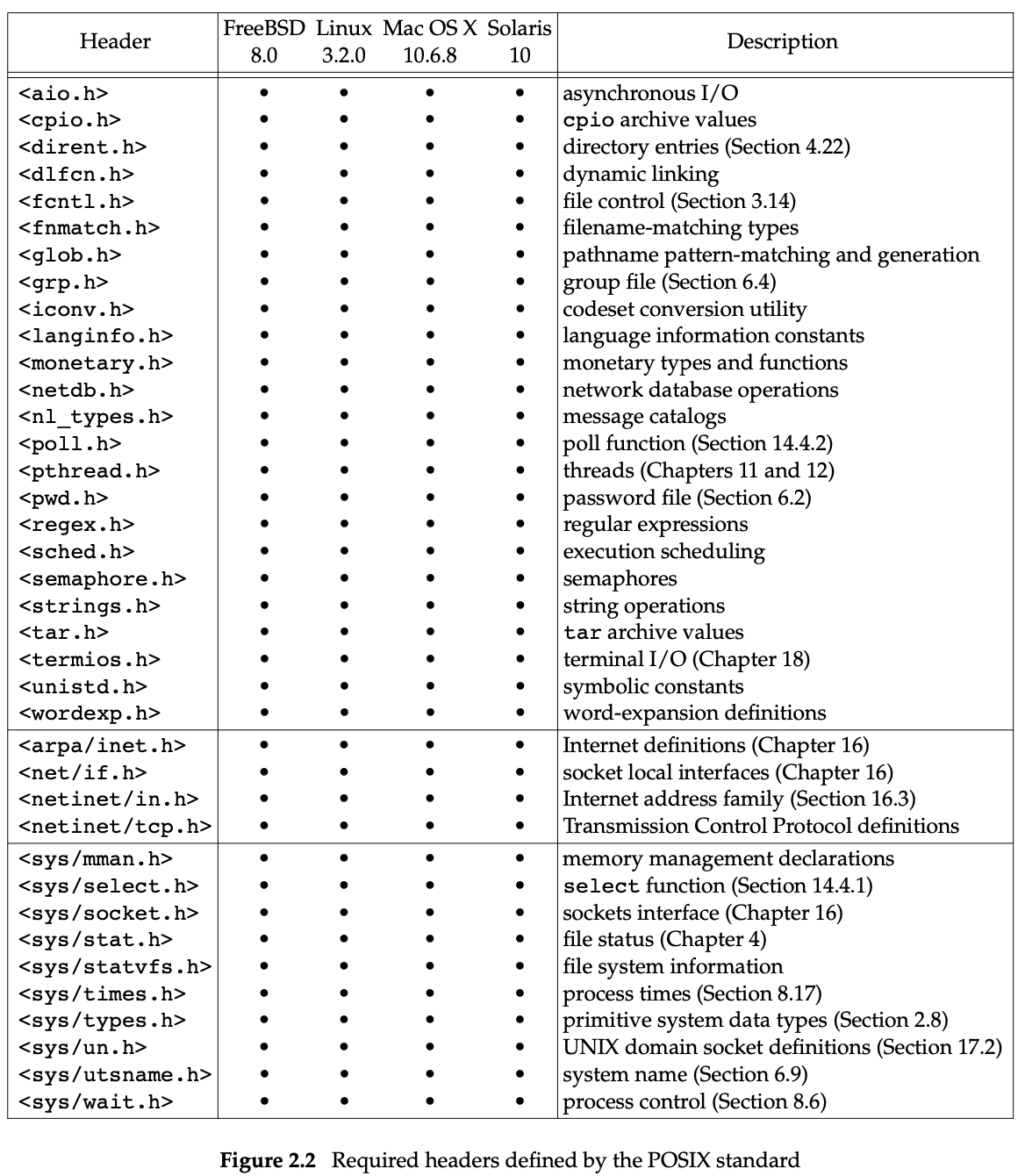

POSIX Required Headers

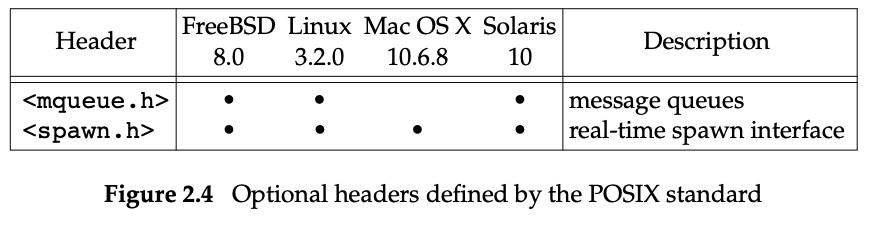

POSIX Optional Headers

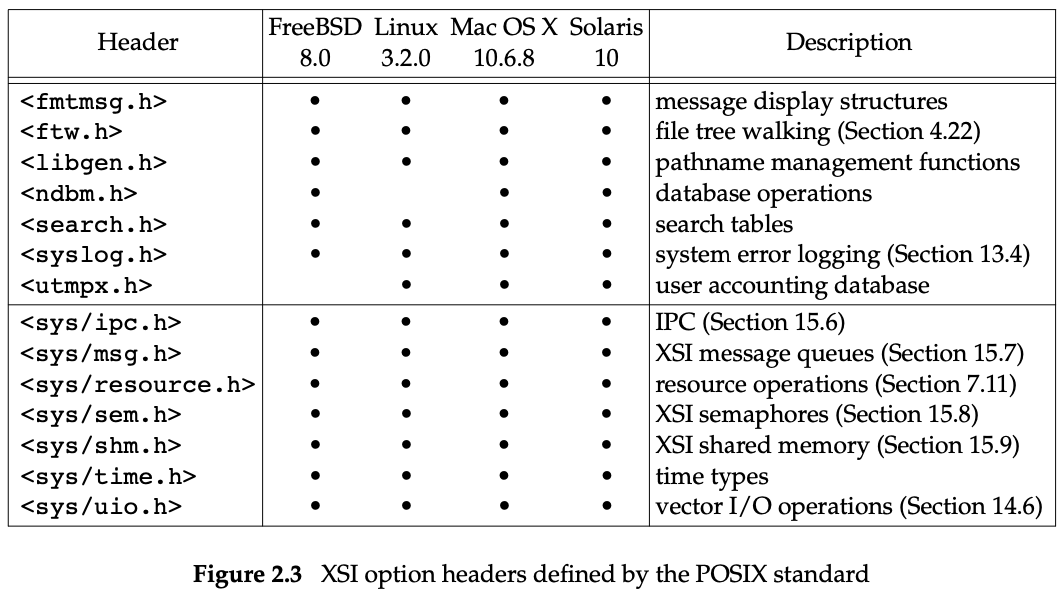

X/Open System interfaces(XSI) option

• describes optional interfaces of POSIX.1
• defines which optional portions of POSIX.1 must be supported for an implementation to be deemed XSI conforming. Only XSI-conforming implementations can be called UNIX systems.

See <unistd.h>

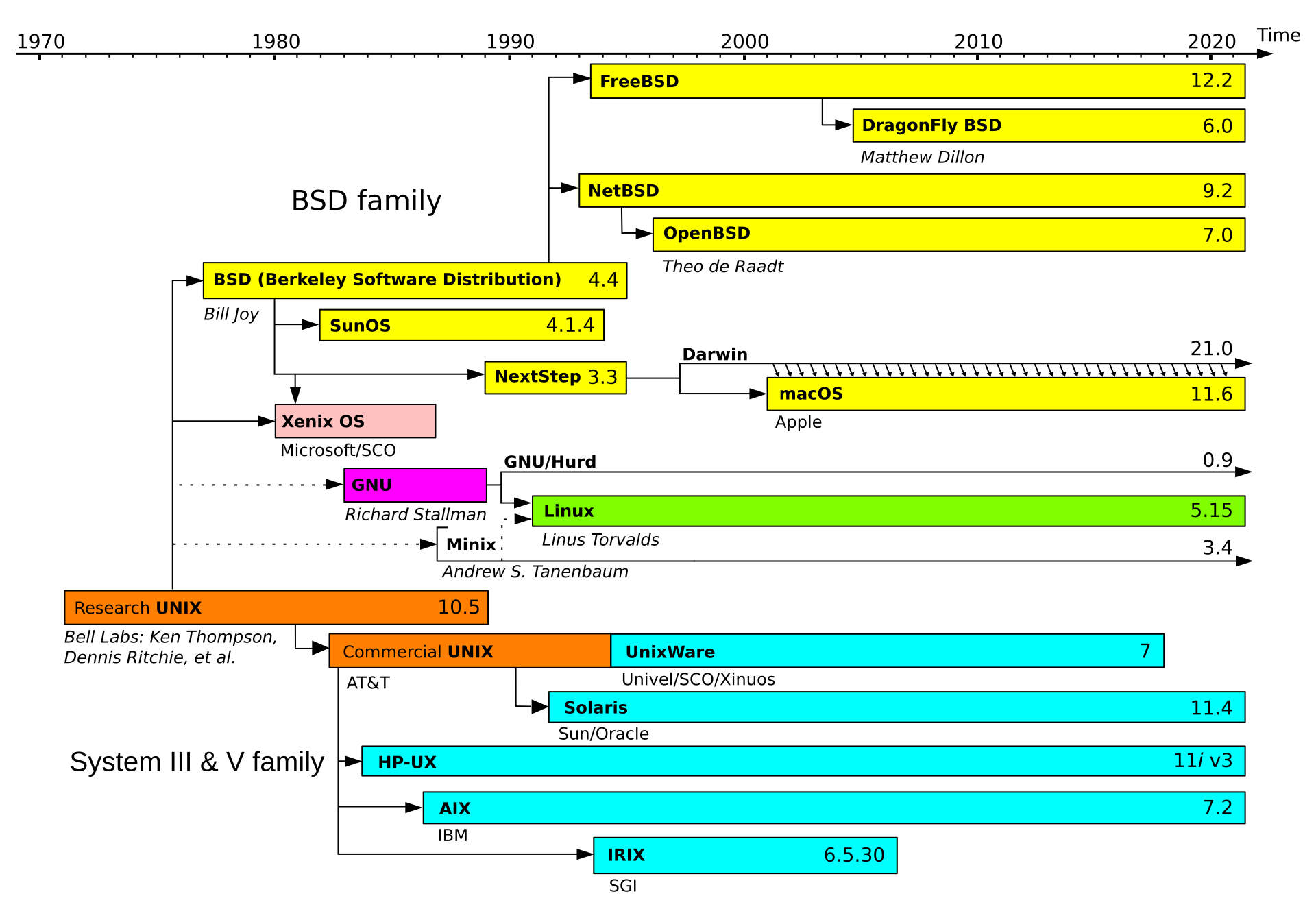

UNIX System Implementations

UNIX Time-Sharing System on PDP-11 (V7, 1979), 3 branches

• System V (commercial version, SVR4 final version), AT&T
• 4.xBSD, UC Berkeley (4.4BSD final version)
• V10 (1990, research version, final version), AT&T Bell Laboratories Computing Science Research Center

FreeBSD (4.4BSD-Lite based)

Linux (to replace MINIX)

Mac OS X(Darwin)

Darwin, is based on a combination of Mach kernel, the FreeBSD, an OO framework for drivers and other kernel extensions.

Solaris(SVR4 based, by Sun Microsystems, now Oracle)

Other UNIX systems

• AIX, IBM
• HP-UX, HP
• IRIX, Silicon Graphics
• UnixWare, based on SVR4, SCO

Limits

Magic numbers and constants defined by implementations, two types:

• Compile-time limits (e.g., what’s the largest value of a short integer?)
  • defined in headers, included at compile time
• Runtime limits (e.g., how many bytes in a filename?)
  • require to call a function to obtain the limit’s value during runtime, conf functions like sysconf, pathconf, fpathconf

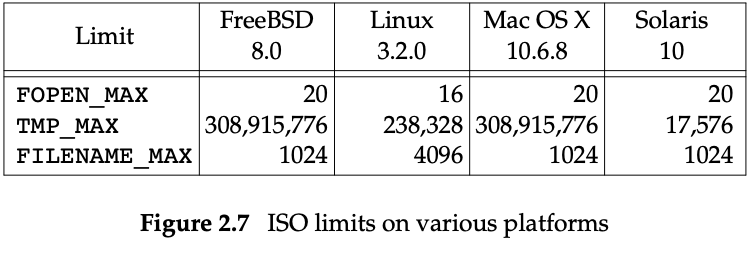

ISO C Limits

Similarly, sizes of float values are defined in <float.h>.

The following limits are defined in <stdio.h>,

NOTE

On macOS,

/Library/Developer/CommandLineTools/SDKs/MacOSX.sdk/usr/include/
limits.h -> machine/limits.h -> i386/limits.h (C limits)

POSIX Limits

POSIX.1 defines numerous constants that deal with implementation limits of the operating system.

In APUE, we only concern 7 categories of limits that affect the base POSIX.1 interfaces.

1. Numerical limits: LONG_BIT, SSIZE_MAX, and WORD_BIT

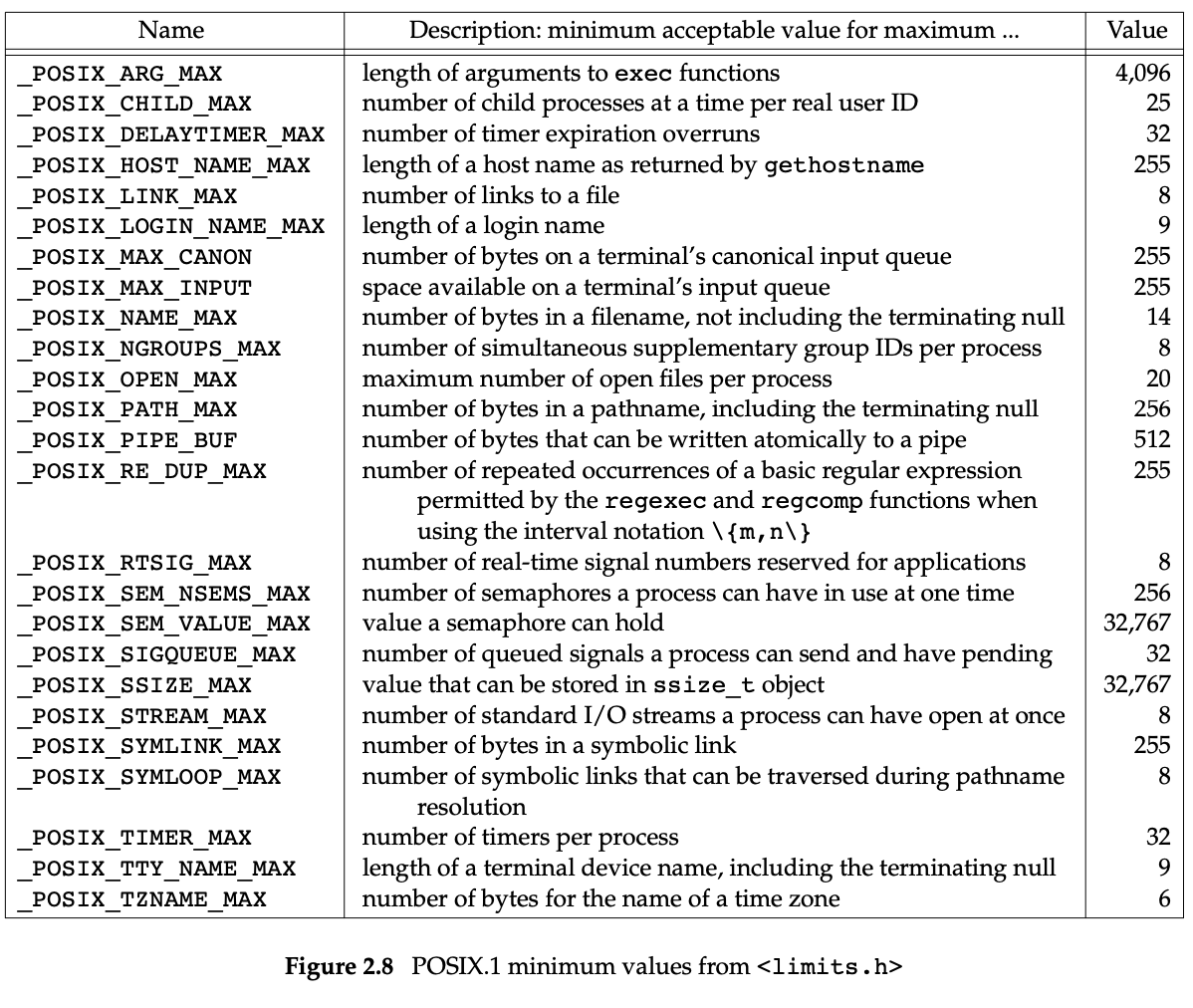

2. Minimum values: the 25 constants in Figure 2.8
3. Maximum value: _POSIX_CLOCKRES_MIN
4. Runtime increasable values: CHARCLASS_NAME_MAX, COLL_WEIGHTS_MAX, LINE_MAX, NGROUPS_MAX, and RE_DUP_MAX

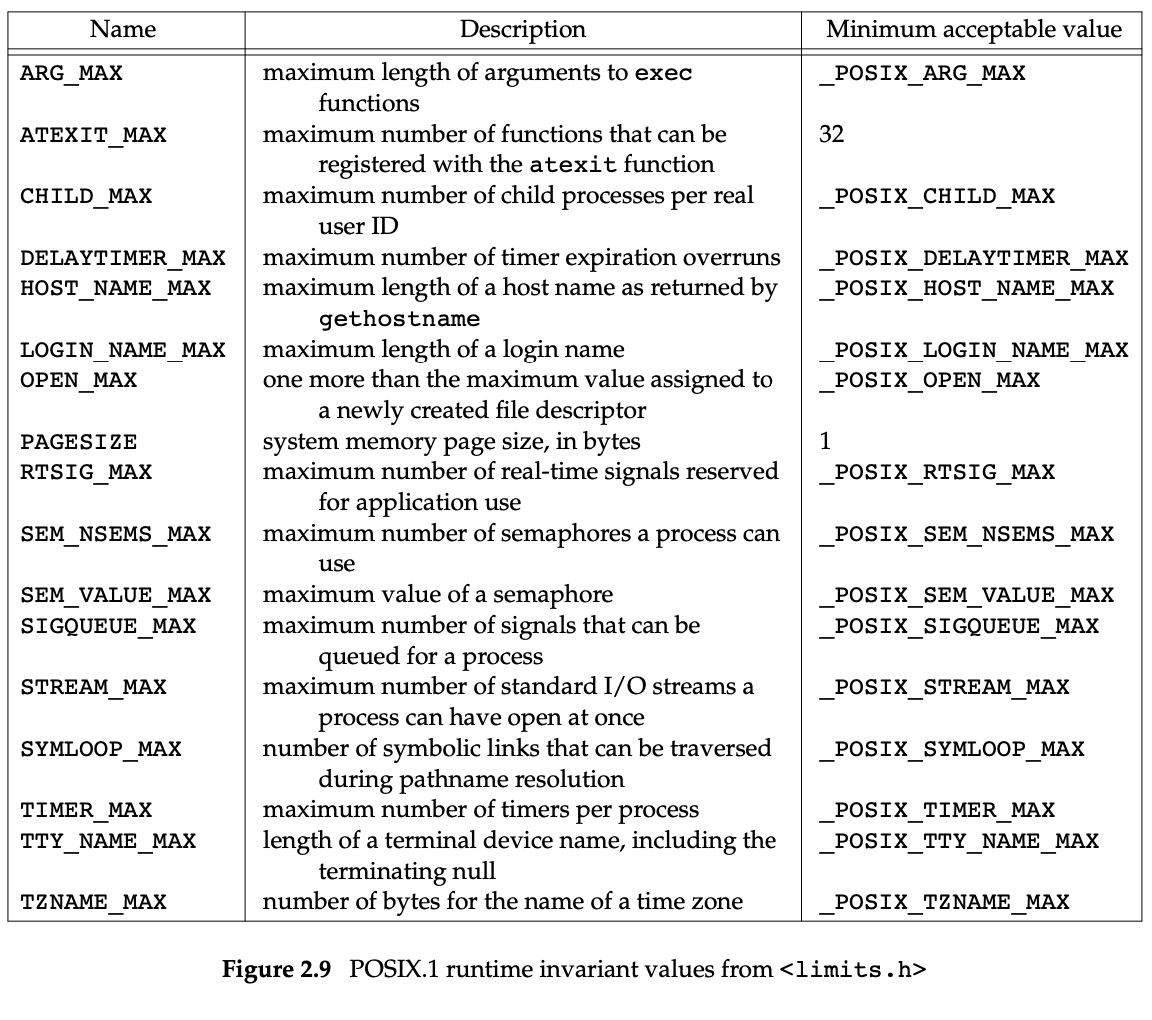

5. Runtime invariant values, possibly indeterminate: the 17 constants in Figure 2.9 (plus an additional four constants introduced in Section 12.2 and three constants introduced in Section 14.5)
6. Other invariant values: NL_ARGMAX, NL_MSGMAX, NL_SETMAX, and NL_TEXTMAX
7. Pathname variable values: FILESIZEBITS, LINK_MAX, MAX_CANON, MAX_INPUT, NAME_MAX, PATH_MAX, PIPE_BUF, and SYMLINK_MAX

The names without the leading _POSIX_ were intended to be the actual values that a given implementation supports. Some of them may not be defined in <limits.h>, then sysconf, pathconf, fpathconf are used to call to get runtime values.

NOTE

On macOS,

/Library/Developer/CommandLineTools/SDKs/MacOSX.sdk/usr/include/
limits.h -> sys/syslimits.h (actual implementation values w/o _POSIX_)

XSI Limits

Also about implementation limits.

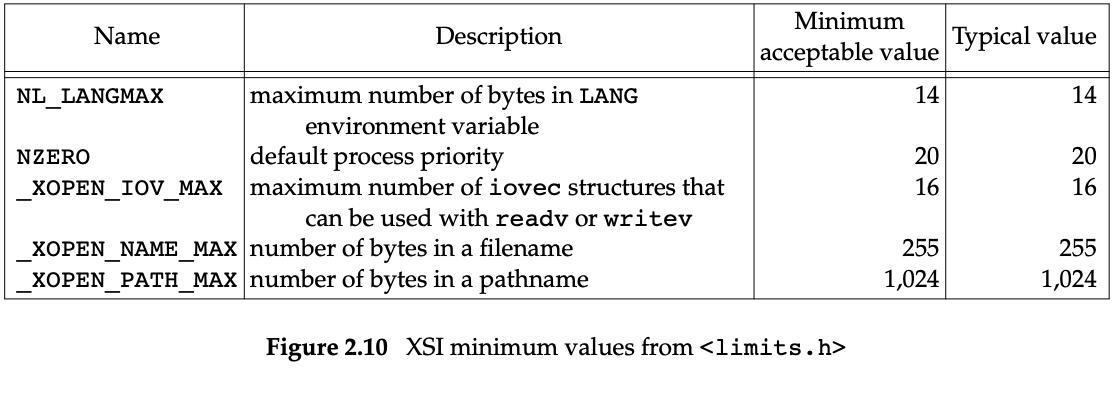

1. Minimum values: the five constants in Figure 2.10
2. Runtime invariant values, possibly indeterminate: IOV_MAX and PAGE_SIZE

NOTE

On macOS,

/Library/Developer/CommandLineTools/SDKs/MacOSX.sdk/usr/include/
limits.h

sysconf, pathconf, fpathconf

Get runtime limits.

#include <unistd.h>
long sysconf(int name);
long pathconf(const char *pathname, int name);
long fpathconf(int fd, int name);

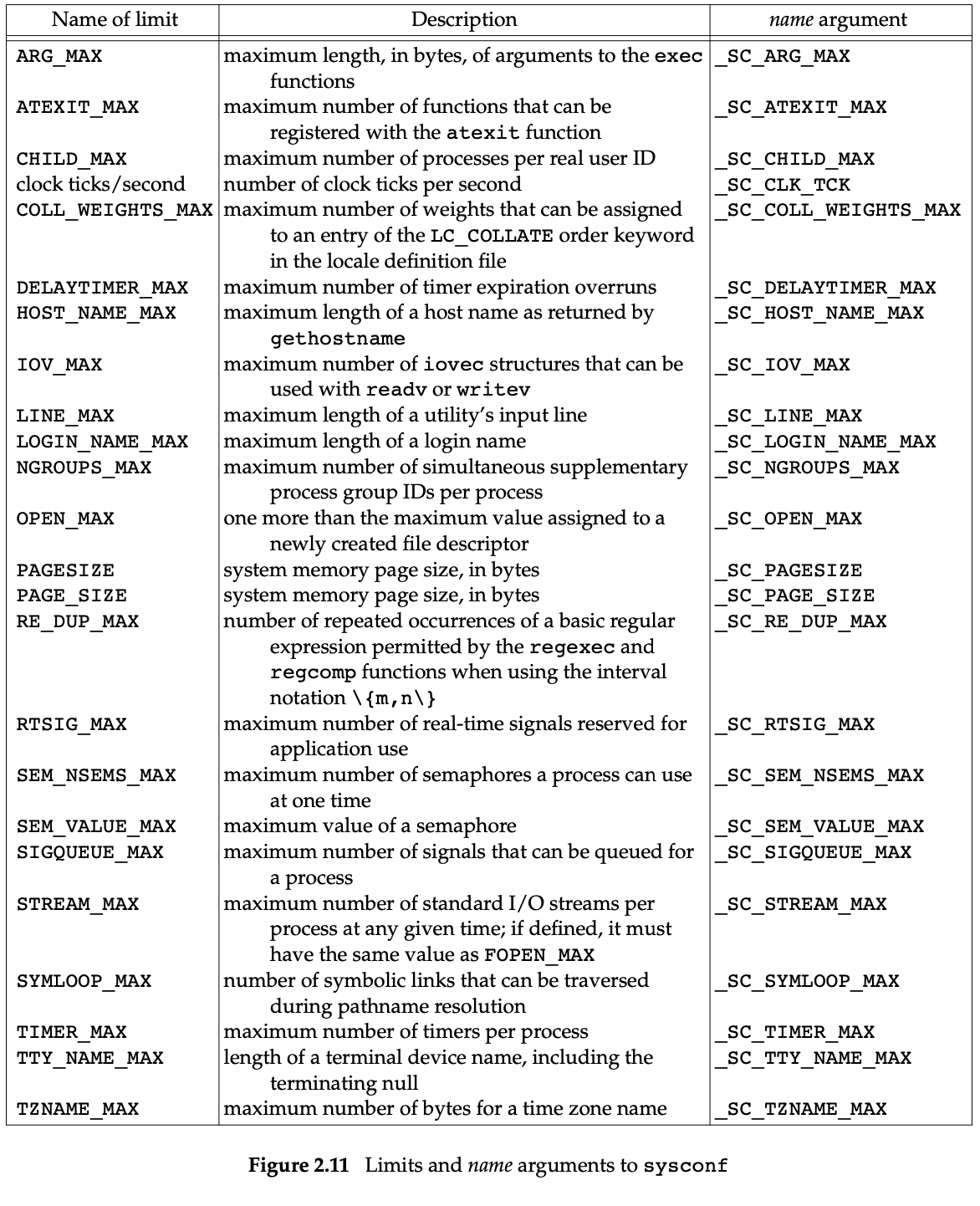

The values in the 3rd column name argument are passed to the name argument of the three conf functions.

NOTE

On macOS,

    /Library/Developer/CommandLineTools/SDKs/MacOSX.sdk/usr/include/
    unistd.h

Indeterminate Runtime Limits

Sometimes, some limits are not defined in limits.h (unavailable at compile time) nor supported by conf functions (unavailable at runtime), these limits are called indeterminate and needed to guess a value.

• pathnames (allocating storage for a pathname)
  • MAXPATHLEN(sys/param.h), PATH_MAX(limits.h -> sys/syslimits.h)
  • if not defined, call pathconf using the name argument _PC_PATH_MAX(unistd.h)
  • if still no results, guess a value
• maximum number of open files (determining the number of file descriptors)
  • OPEN_MAX (limit.h -> sys/syslimits.h)
  • if not defined, call sysconf using the name argument _SC_OPEN_MAX(unistd.h)
  • if still no results, guess a value

Systems that support the XSI option in the SUS will provide setrlimit(2) (sys/resource.h), which can be used to change a value for a running process or, changed by limit command in C shell, ulimit command in Bash, Debian, K shell). Then, sysconf function shall be called every time not just the first time.

Options

Just as with limits, POSIX.1 defines three ways to determine options.

1. Compile time options are defined in <unistd.h>
2. Runtime options that are not associated with a file or a directory are identified with the sysconf function.
3. Runtime options that are associated with a file or a directory are discovered by calling either the pathconf or the fpathconf function.

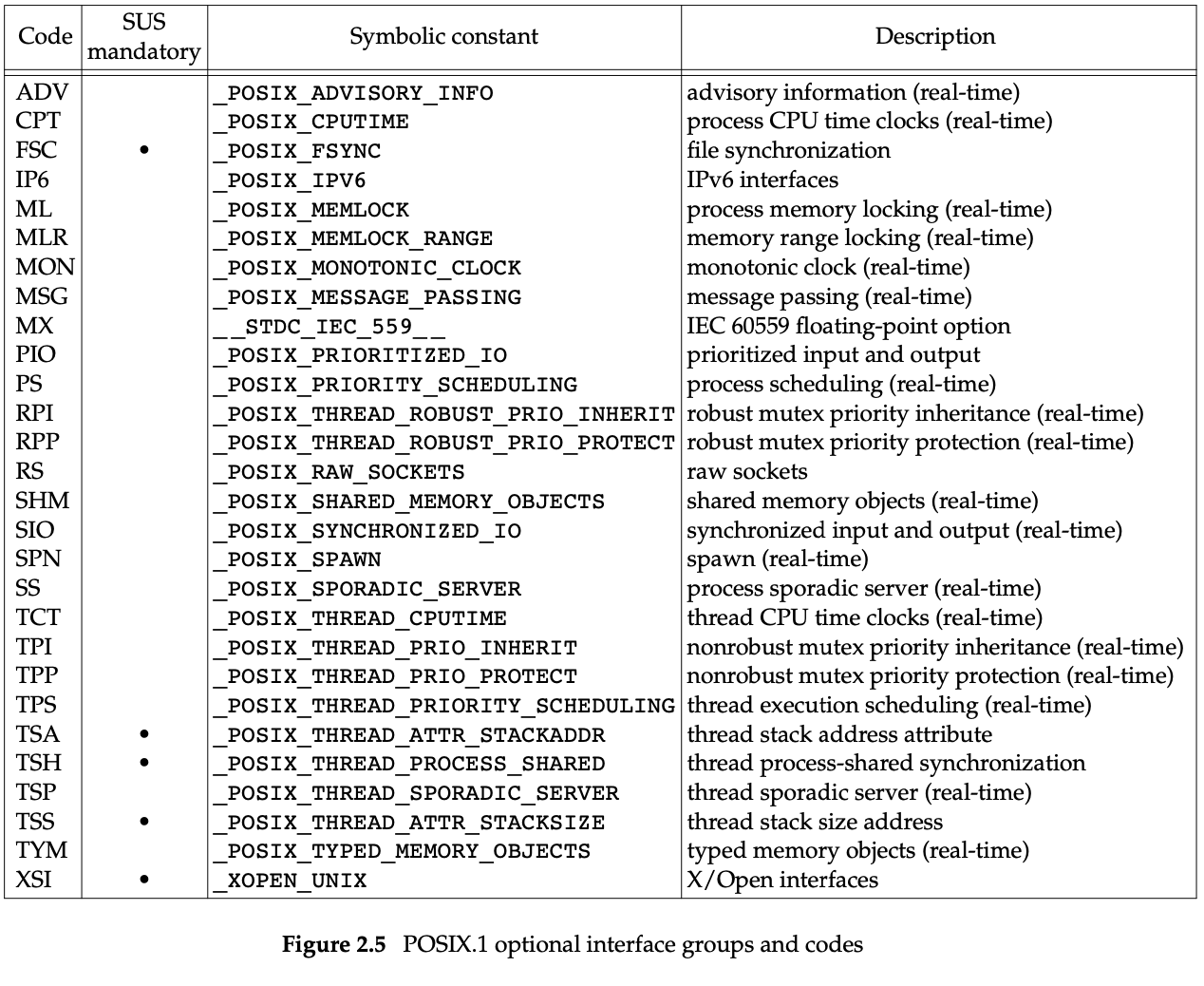

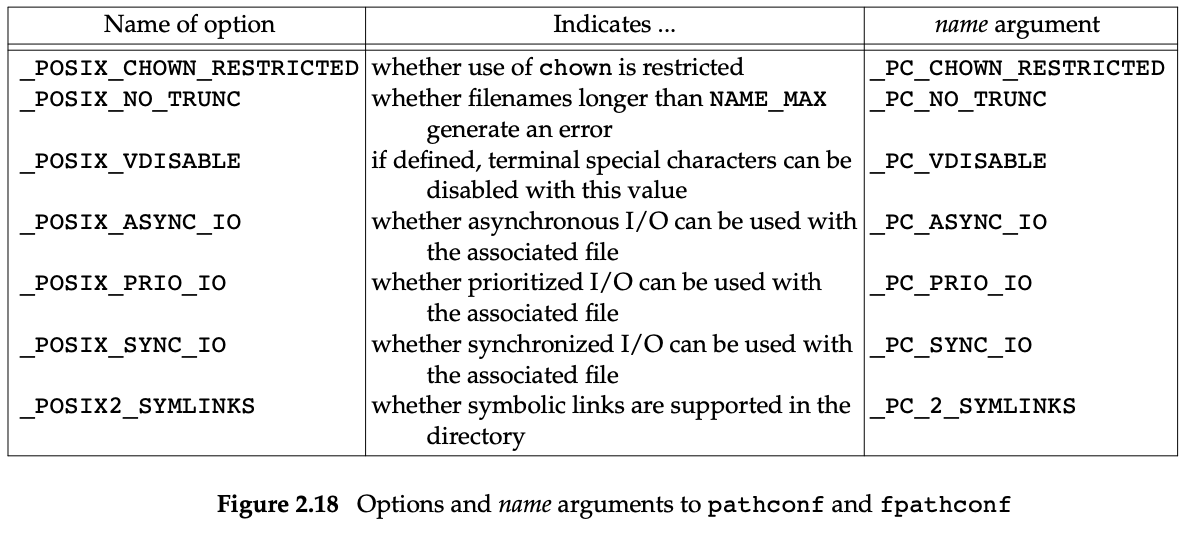

For runtime options, see Fig2.5, Fig2.18, Fig2.19.

Replace _POSIX_ with _SC_ or _PC_ when calling conf functions.

For each option, there’re 3 possibilities for a a platform’s support status.

1. If the symbolic constant is undefined or defined to have the value -1, then the option is unspported by the platform at compile time. A runtime check may indicate the option is supported.

2. If the symbolic constant is defined to be greater than 0, then the option is supported.

3. If the symbolic constant is defined to be 0, then we need to call sysconf, pathconf, fpathconf to determine. (-1, unsupported)

Feature Test Macros

All feature test macros begin with an underscore.

_POSIX_C_SOURCE: All POSIX.1 headers use this constant to exclude any implementation specific definitions.

Usages:

• Use it in cc command

    cc -D_POSIX_C_SOURCE=200809L file.c

• Set the first line of a source file to

    #define _POSIX_C_SOURCE 200809L

_XOPEN_SOURCE: to enable the XSI option of SUSv4

    c99 -D_XOPEN_SOURCE=700 file.c -o file

To enable 1999 ISO C extensions in the gcc C compiler, use -std=c99 option

    gcc -D_XOPEN_SOURCE=700 -std=c99 file.c -o file

System header for feature definition on Linux and macOS

• Linux: <features.h>
• macOS: <sys/cdefs.h>

void test_features() {
#ifdef __linux__
  printf("On Linux, <fcntl.h> includes <features.h>, in which compilation "
         "environment is determined and macros are defined.\n");
#ifdef _GNU_SOURCE
  printf("When compiled with _GNU_SOURCE, \n");
#endif
#ifdef _LARGEFILE64_SOURCE
  printf("_LARGEFILE64_SOURCE was defined to be %d.\n", _LARGEFILE64_SOURCE);
#endif
#ifdef __USE_LARGEFILE64
  printf("__USE_LARGEFILE64 was defined to be %d further.\n",
         __USE_LARGEFILE64);
#endif
#ifdef O_LARGEFILE
  printf("O_LARGEFILE = %d.\n", O_LARGEFILE);
#endif
#ifdef __USE_FILE_OFFSET64
  printf("__USE_FILE_OFFSET64 = %d.\n", __USE_FILE_OFFSET64); // not defined
#endif
#ifdef __O_LARGEFILE
  printf("__O_LARGEFILE defined.\n");
#endif

  // NOTE:
  // open64.c (glibc:
  // /usr/src/glibc/glibc-2.36/sysdeps/unix/sysv/linux/open64.c)
  //  __libc_open64
  //    return SYSCALL_CANCEL (openat, fd, file, oflag | O_LARGEFILE, mode);

#elif defined(__APPLE__)
  printf("On macOS, <fcntl.h> use <sys/cdefs.h> for feature determnination:\n");
#ifdef _DARWIN_C_SOURCE
  printf("_DARWIN_C_SOURCE\n");
#endif
#ifdef __DARWIN_UNIX03
  printf("__DARWIN_UNIX03 \n");
#endif
#endif
}

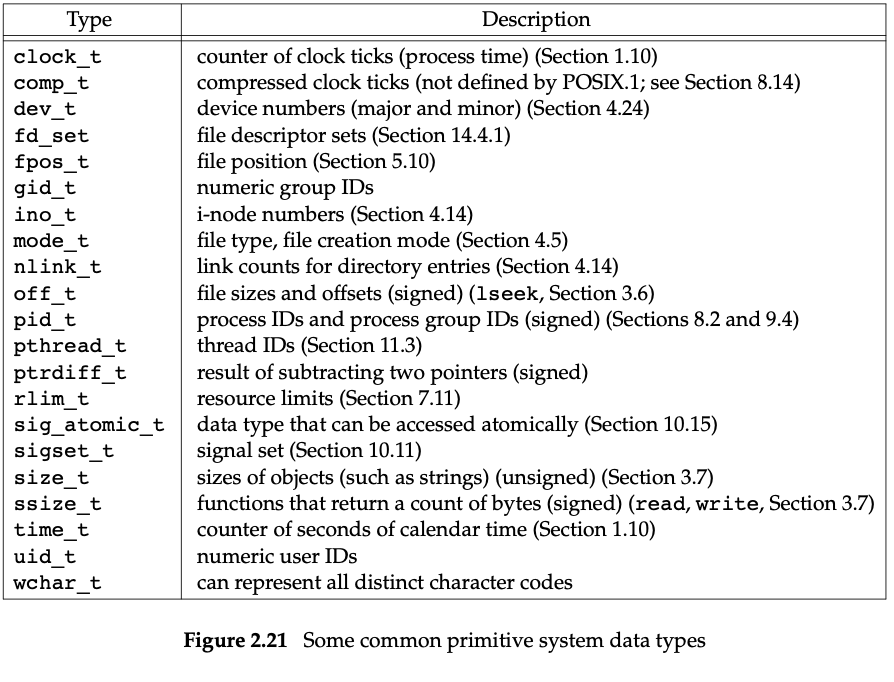

Primitive System Data Types

<sys/types.h> defines some implementation-dependent data types, called primitive system data types. These types end in _t.

Some differences between ISO C and POSIX.1

CLOCK_PER_SEC

signal sigaction functions

Exercises

2.1 Avoid multiple typedefs of size_t among headers

// <i386/_types.h>
#if defined(__SIZE_TYPE__)
typedef __SIZE_TYPE__           __darwin_size_t;        /* sizeof() */
#else
typedef unsigned long           __darwin_size_t;        /* sizeof() */
#endif

// <machine/_types.h>
#if defined (__i386__) || defined(__x86_64__)
#include "i386/_types.h"
#elif defined (__arm__) || defined (__arm64__)
#include "arm/_types.h"
#else
#error architecture not supported
#endif

// <sys/_types/_size_t.h>
#ifndef _SIZE_T
#define _SIZE_T
#include <machine/_types.h> /* __darwin_size_t */
typedef __darwin_size_t        size_t;
#endif  /* _SIZE_T */

// <stddef.h>
#include <sys/_types/_size_t.h>

// my_src.c
#include <stddef.h>

int main(void)
{
  size_t s = sizeof(int);
  return 0;
}

/* sizeof(int)=4 */
/* sizeof(long)=8 */
/* sizeof(size_t)=8 */

2.2 Examine your system’s headers

List the actual data types to implement the primitive system data types.

On macOS,

<stddef.h> -> <sys/_types.h> (<i386/_types.h>) -> <sys/types/_xxx_t.h>

clock_t         unsigned long
comp_t          unsigned short

pthread_t       <sys/_pthread/_pthread_t.h>
sig_atomic_t    int
sigset_t        unsigned int
size_t          unsigned long
ssize_t         long
time_t          long
wchar_t         int

gid_t           unsigned int
uid_t           unsigned int
pid_t           int

2.3 Deal with sysconf returning LONG_MAX as the limit for OPEN_MAX.

Use getrlimit() (<sys/resource.h>)
