Ch01 Overview

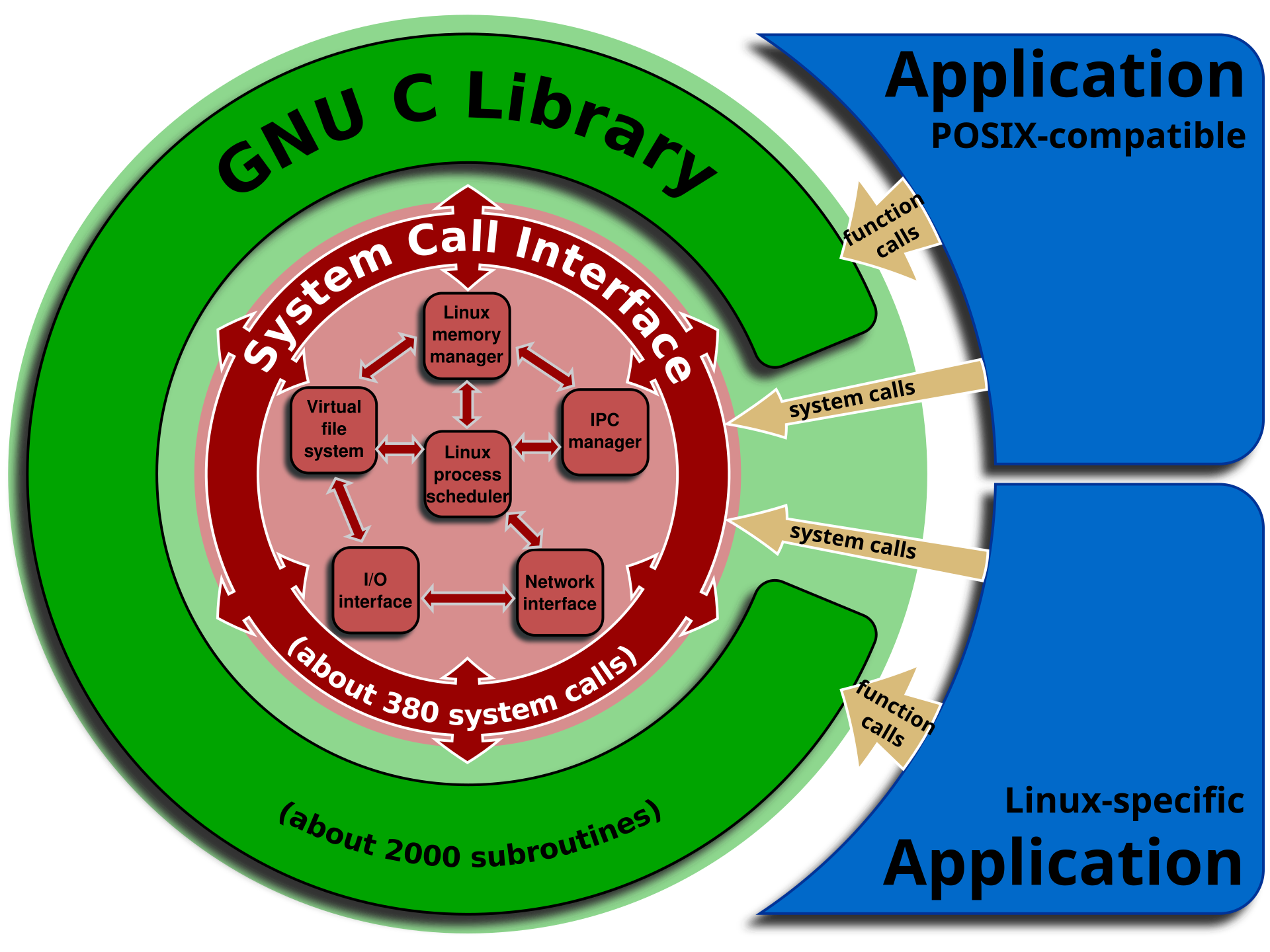

System Calls and Library Functions

system calls

• entry points directly into the system kernel
• documented in Section 2 of the UNIX Programmer’s Manual (e.g. man 2 write)
• defined in the C language, each one has a function in the Standard C Library
  • arguments transferred and placed in registers (like rdi, rsi, rdx, etc.)
  • execute a machine instruction, like syscall on x86_64, which triggers a software interrupt (trap) that switches from user mode to kernel mode (by generating an exception that transfers control to a predefined address in the kernel - the syscall entry point).

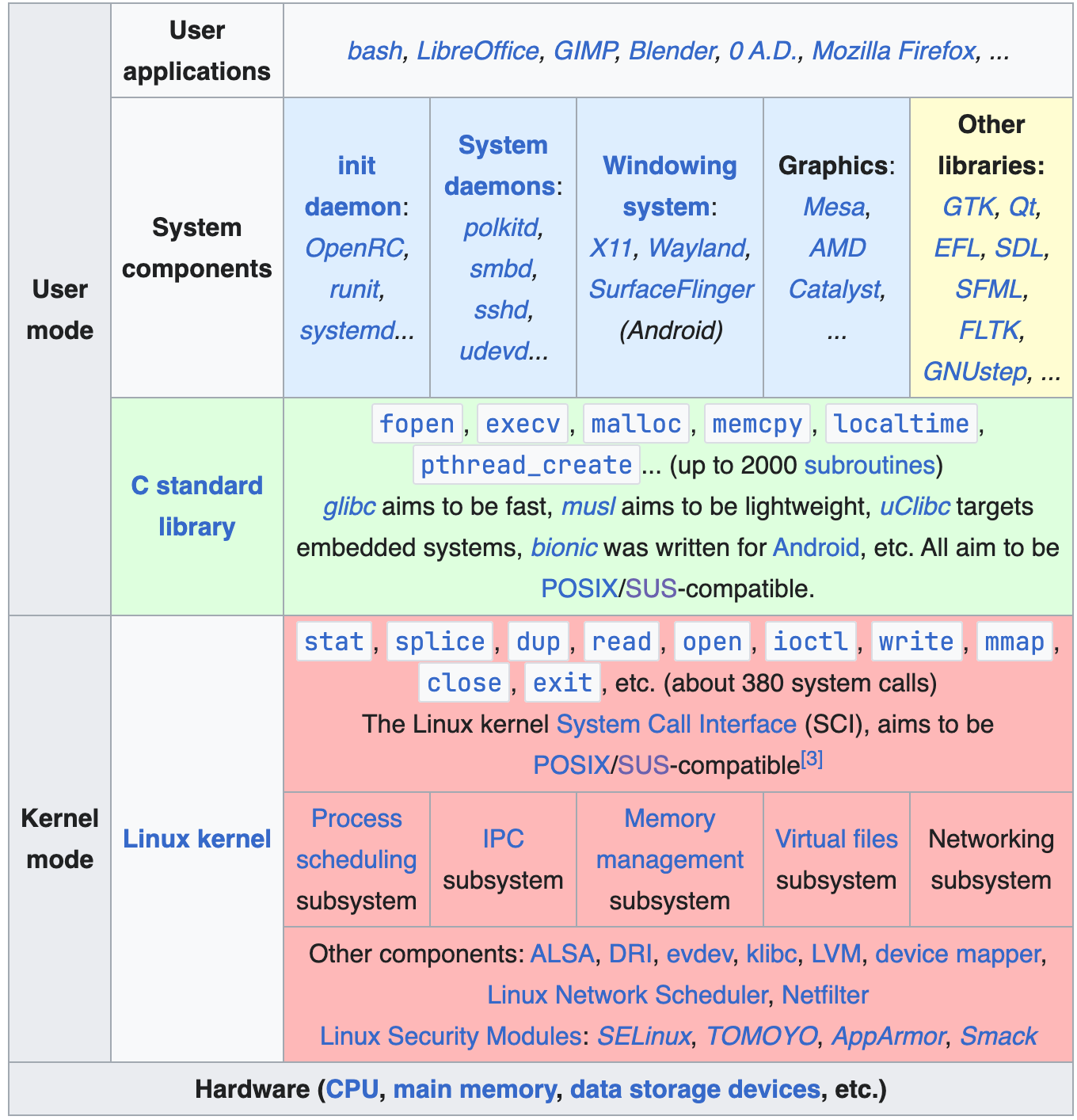

    • on x86_64, it switches the CPU from user mode (ring 3) to kernel mode ( ring 0), ensuring the kernel can safely perform sensitive operations (like accessing hardware, managing processes).
  • the CPU performs a context switch, saving the state of the user-space process (registers, program counter, etc.) and loading the sate of the kernel execution context.
  • the OS handles the system call in kernel mode
  • once the system call is complete, control is switched back to user-space by calling another machine instruction, like sysret on x86_64, user program continues execution where it left off.

library functions

• application interfaces
• documented in Section 3 of the UNIX Programmer’s Manual (e.g. `man 3 printf1)
• some functions has nothing to do with system call, like atoi(3), man 3 atoi
• some functions involves system calls, like printf(3) using write(2) or malloc(3) using sbrk(2)
  • man 3 printf, man 2 write, man 3 malloc, man 2 sbrk
